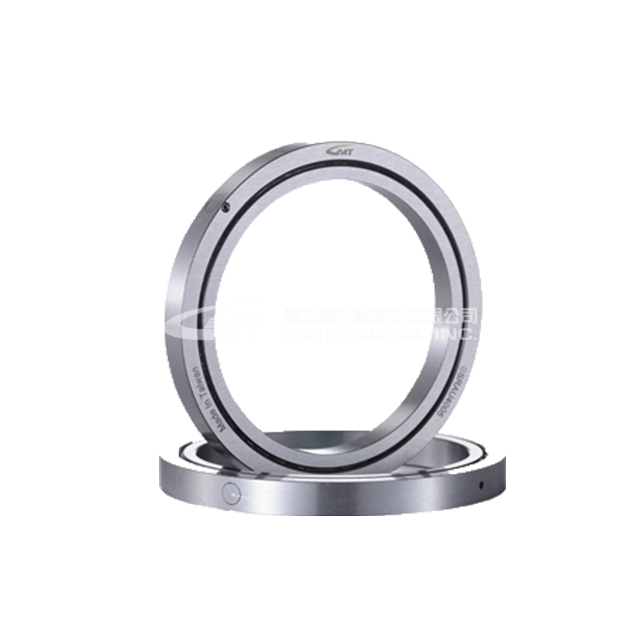

    Super Slim Cross Roller Bearing -GSRAU10008


    ★Super slim type cross roller bearing with three options of bearing width: 5mm, 8mm and 13mm.
    ★Highly rigid and compact design is suitable for limited space and lightweight mechanism.
    ★Easy to install and adjust.
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.05.30

    Axial

    Model No.

     Main Dimensions

    Flarge Height

    Basic Load

    Weight

    I,D,

    Ød

    O,D,

    ØD

    Pitch Chirde Diameter

    dp

    Width

    T

    Greasing Hole

    d0

    Chamfer

    rmin

    Øda

    ØDh

    C

    KN

    C0

    KN

    Kg

    20

    SRAU2005

    20

    31

    24.7

    5

    10.1522.5271.941.40.015

    30

    SRAU3005

    30

    41

    34.7510.1532.5371.892.140.021

    40

    SRAU4005

    40

    51

    44.7510.1542.5472.142.740.027

    50

    SRAU5005

    50

    61

    54.7510.1552.5572.433.490.032

    60

    SRAU6005

    60

    71

    64.7510.1562.5672.634.060.038

    70

    SRAU7005

    70

    81

    74.7510.1572.5772.814.680.044

    80

    SRAU8005

    80

    91

    84.7510.1582.5873.055.430.5

    90

    SRAU9005

    90

    101

    94.5510.1592.5973.196.030.056

    100

    SRAU10005

    100

    111

    104.7510.15102.51073.376.630.061



    Axial

    Model No.

     Main Dimensions

    Flarge Height

    Basic Load

    Weight

    I,D,

    Ød

    O,D,

    ØD

    Pitch Chirde Diameter

    dp

    Width

    T

    Greasing Hole

    d0

    Chamfer

    rmin

    Øda

    ØDh

    C

    KN

    C0

    KN

    Kg

    50

    GSRAU5008

    50665781.50.553.560.55.17.190.08
    60

    GSRAU6008

    60766781.50.563.570.55.688.680.09
    70

    GSRAU7008

    70867781.50.573.580.55.989.80.1
    80

    GSRAU8008

    80968781.50.583.590.56.3711.30.11
    90

    GSRAU9008

    901069781.50.593.5100.56.7612.40.12
    100

    GSRAU10008

    10011610781.50.5103.5110.57.1513.90.14
    110

    GSRAU11008

    11012611781.50.5113.5120.57.45150.15
    120

    GSRAU12008

    1201612781.50.5123.5130.57.8416.50.17
    130

    GSRAU13008

    13014613781.50.5133.5140.57.9417.60.18
    140

    GSRAU14008

    140

    156

    14781.50.5143.5150.58.3319.10.19
    150

    GSRAU15008

    150

    166

    15781.50.5153.5160.58.8220.60.2
    160

    GSRAU16013

    160

    186

    1721320.816517923.344.90.59
    170

    GSRAU17013

    170

    196

    1821320.817518923.546.50.64
    180

    GSRAU18013

    180

    206

    1921320.818519924.549.80.68
    190

    GSRAU19013

    190

    216

    2021320.819520924.951.50.69
    200

    GSRAU20013

    200

    226

    2121320.820521925.854.50.71
