    Stepper motor direct drive ball screws-08

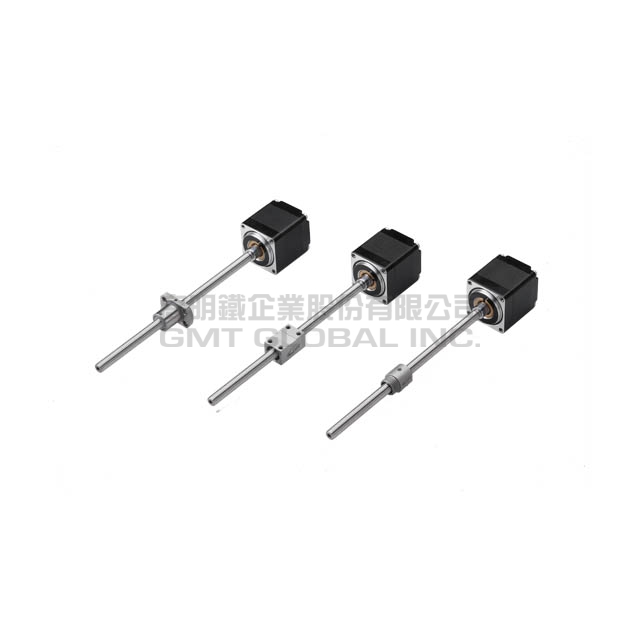

    Stepper motor direct drive ball screws
    Type of nut - Threaded(M), Flanged(F), Rectangular(H)
    Precision Grade-Rolled Grade-C5 & C7
    Lead - 0801, 0802
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Updata:2023.06.01

    Rolled

    Nominal Diameter (mm)

    8

    0801 Ball Diameter (mm)

    0.8

    0802 Ball Diameter (mm)

    1.2

    0801 Lead (mm)

    1

    0802 Lead (mm)

    2

    B.C.D. (mm)

    8.3

    Thread Direction

    Right Hand

    Circuits

    1 Return x 3 Circuits

    Accuracy

     C5X /  C5Y /   C7Y  /C7Z

    Axial Backlash

    0 /  < 0.005 / < 0.005 / < 0.01

    0801 Dynamic Load Ca (N)

    700

    0802 Dynamic Load Ca (N)

    1700

    0801 Static load Coa (N)

    1420

    0802 Static load Coa (N)

    3200



    Model No.

    Stroke

    Shaft LengthCumulative Deviation ToleranceNut Parallelism ToleranceFlanged Nut
    Verticality
    Nut
    Deviation
    Tolerance
    Lead Accuracy
    L1LS1N1N2Mean TravelVariation
    MS2P42Z-0801(0802)KS-RC5□-65R124-F40651240.035N/A0.010.0120.0180.018
    MS2P42Z-0801(0802)KS-RC5□-65R124-MN/A
    MS2P42Z-0801(0802)KS-RC5□-65R124-H0.01N/A
    MS2P42Z-0801(0802)KS-RC7□-65R124-F0.045N/A0.0140.02Travel Distance:±0.05/300
    MS2P42Z-0801(0802)KS-RC7□-65R124-MN/A
    MS2P42Z-0801(0802)KS-RC7□-65R124-H0.017N/A
    MS2P42Z-0801(0802)KS-RC5□-95R154-F70951540.035N/A0.010.0120.0180.018
    MS2P42Z-0801(0802)KS-RC5□-95R154-MN/A
    MS2P42Z-0801(0802)KS-RC5□-95R154-H0.01N/A
    MS2P42Z-0801(0802)KS-RC7□-95R154-F0.045N/A0.0140.02Travel Distance:±0.05/300
    MS2P42Z-0801(0802)KS-RC7□-95R154-MN/A
    MS2P42Z-0801(0802)KS-RC7□-95R154-H0.017N/A
    MS2P42Z-0801(0802)KS-RC5□-125R184-F1001251840.035N/A0.010.0120.020.018
    MS2P42Z-0801(0802)KS-RC5□-125R184-MN/A
    MS2P42Z-0801(0802)KS-RC5□-125R184-H0.01N/A
    MS2P42Z-0801(0802)KS-RC7□-125R184-F0.045N/A0.0140.02Travel Distance:±0.05/300
    MS2P42Z-0801(0802)KS-RC7□-125R184-MN/A
    MS2P42Z-0801(0802)KS-RC7□-125R184-H0.017N/A





    Motor Spec.

    Number of phases

    2

    Step angle

    1.8˚±5%(Synchronizing, idling)

    Rated voltage(V)

    4.4

    Current / phase(A)

    0.8

    Resistance / phase(Ω)

    5.5±10%

    Inductance / phase(mH)

    1.5±15%

    Moment of inertia(kg∙m2)

    50

    Holding torque(g∙cm)

    450
