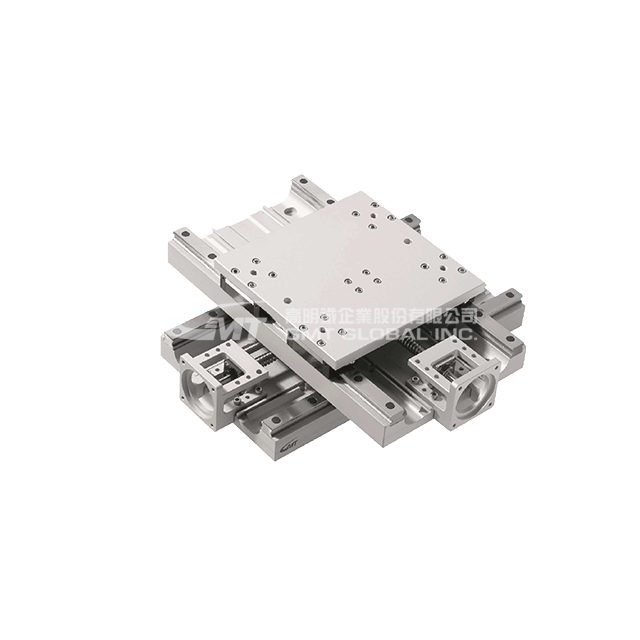

    Precise Level GXY40


    Double axis-XY axis
    Table width : 400 (mm)
    Table size : 400x420 (mm)
    ★ Accuracy level-Precise level(P): Ball screw shaft is C5 level, linear slide block is precise level(heavy preload).
    ★ All products are Cryogenic Treatment. It can not only significantly upgrade the toughness and operation lifetime but also improve the dimension stability of materials.
    ★ Application:Measure device、instrument、painting equipment
    ★ Material- Aluminum alloy
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2018.06.29

    ModelTravel stroke(mm)Straightness (mm)Postitioning Precision (mm)Repeatability Precision (mm)Load capacity(kgf)Weight ( kg)
    Primary anodizedBlack anodizedX AxisY Axis
    GXY40-4040WPGXY40-4040BP±200±2000.040.12±0.0056068.3
    GXY40-4050WPGXY40-4050BP±200±2500.040.13±0.0056071.7
    GXY40-5050WPGXY40-5050BP±250±2500.040.15±0.0056075.1

    Model No.

    Product Character

    GMT XY-TABLE divided into

    ◎ Precise level(P):Ball screw shaft is C5 level, linear slide block is precise level. (heavy preload).

    Application:Measure device, instrument, painting equipment

    ◎ Regular level(R):Ball screw shaft is R level, linear slide block is high level H (light preload).

    Application  :Woodworking machine、Cutting machine, LCR carving machine ,Video Comparator

    Perfect durability

    GMT  linear Slide table base is made by high strength aluminum alloy, has been stress eliminated and cryogenic treatment under 196℃(Please refer to P.42), such quality may maintain high precision still after long period using. While it is applied to the slide table required high precision, the base structure is stable enough to against distortion such as expansion while thermal and shrink while cool caused by the environment variation, also can keep a consistence movement of the slide table set. Thus, the base material durability has been highly increased to take the maximum deforming.

    Variety of dimensions assembly

    XY-TABLE dimensions, from 150mm ~ 400mm, travel stroke from 50mm ~ 500mm, modulized design creates variety of single axis or dual axes models, fit for linear moulds used in Automatic, Photo-electric, and Semi-conduct fields.

    Motor base

    Matched with all servo motors, easy insert installation without axis adjustment.

    * Motors, couplings are excluded from GMT XY-TABLE units.

    Product selection

    Product selection

    1. Choose precise level (P) or regular level(R) by working environment and accuracy             requirement.

    2. Select Single axis or Dual axes.

    3. Required table dimensions.

    4. Stroke options.

    5. Function options:with dust cover(J),No dust cover.

    6. Surface finish:Anodizing - Primary color or Black color.

    7. Coupling added or not( optional accessory)

    8. Please advise motor brand, model no. while ordering. (to match with motor connection)
