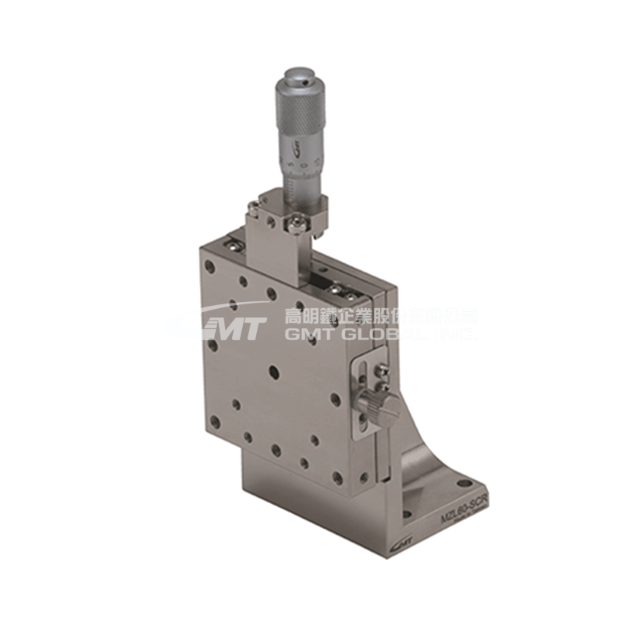

<span style="font-size: 12pt;">Z axis manual stage</span> <br /><span style="font-size: 12pt;">Single axis-Z axis-(X axis + L bracket)</span> <br /><span style="font-size: 12pt;">Table size : 25 (mm)</span> <br /><span style="font-size: 12pt;">Travel stroke : ±3.2 (mm)</span> <p><br /><span style="font-size: 12pt;"><span style="color: #e03e2d;"><strong>★</strong></span><span style="color: #e03e2d;"><strong>This product pic. shows as MZL60-SCR.</strong></span></span></p> <br /><span style="font-size: 12pt;">Feed position-Reversed Central feeding</span> <br /><span style="font-size: 12pt;">★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.</span> <br /><span style="font-size: 12pt;">★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.</span> <br /><span style="font-size: 12pt;">★ Material- Stainless steel</span> <p><br /><span style="font-size: 12pt;"><span style="color: #e03e2d;"><strong>★</strong></span><span style="color: #e03e2d;"><strong>This product pic. shows as MZL60-SCR.</strong></span></span></p>">
★This product pic. shows as MZL60-SCR.
★This product pic. shows as MZL60-SCR.
Update:2022.4.21
Model No. | MZL25-SCR | |
Specification | Table Size (mm) | 25 X 25 |
Travel Stroke (mm) | ± 3.2 | |
Micrometer Min. Reading (μm) | 10 | |
Straightness Accuracy (μm) | 3 | |
Pitching Accuracy | 30" | |
Yawing Accuracy | 25" | |
Allowable Loading (Kgf) | 1 | |
Weight (Kg) | 0.23 | |
Material | SUS 440C | |
Surface Finish | Electroless Nickel Plating |
Feed Position |
Characterisitc of Different Guiding Type |
The Main Feeding Mode of Mini Stages |
