MZA3-5060

Z axis manual stage – Horizontal type
Single axis - Horizontal Z axis
Table size : 50x64 (mm)
Travel stroke : 5.0 (mm)
★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
★ Transmission Parts – Micrometer head.
★ Material - Aluminum alloy

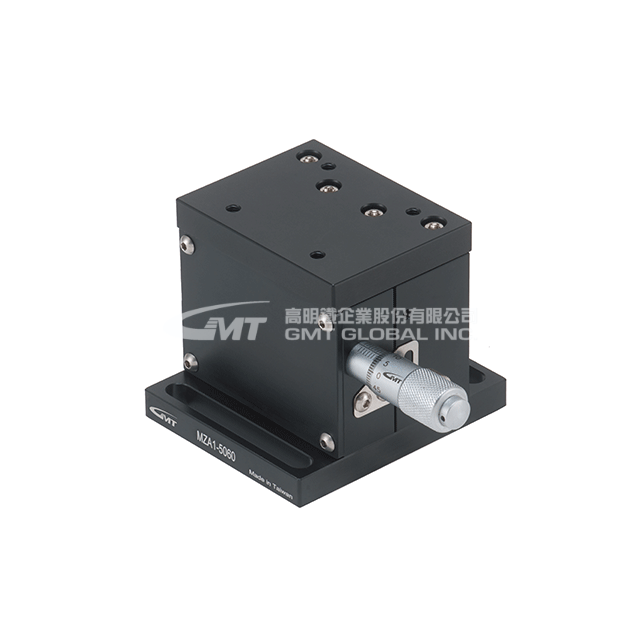

★This product pic. shows as MZA1-5060.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.5.4

Model No.		MZA3-5060
Specification	Table Size (mm)	50 X 64
	Travel Stroke (mm)	5
	Micrometer Min. Reading (μm)	10
	Horizontal Deviation of Elevation (μm)	30
	Allowable Loading (Kgf)	10
	Weight (Kg)	0.72
	Material	Aluminum Alloy
	Surface Finish	Black Anodized

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages
