    MZA-80


    Z axis manual stage – Horizontal type
    Single axis - Horizontal Z axis
    Travel stroke : ±5 (mm)
    ★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
    ★ Transmission Parts - Feeding screw. It is suitable for simple precise moving.
    ★ Material - Aluminum alloy

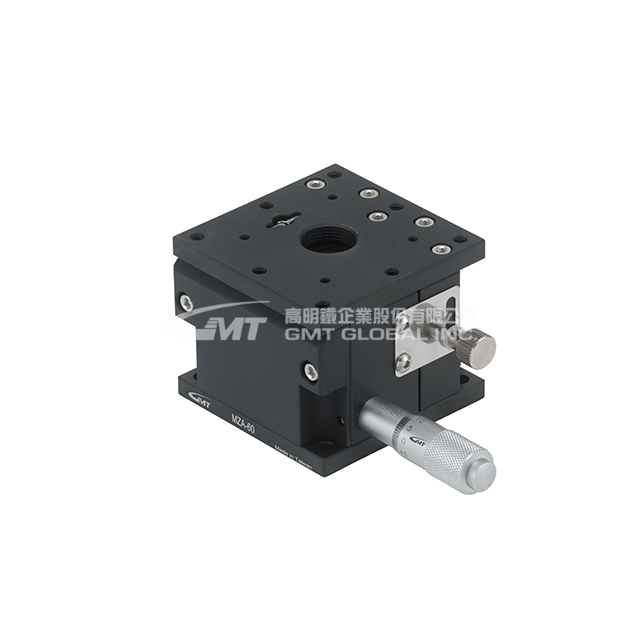

    This product pic. shows as MZA-60.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.5.4

    Model No.

    MZA-80

    Specification

    Table Size (mm)

    80 X 80

    Travel Stroke (mm)

    ± 5

    Micrometer Min. Reading (μm)

    10

    Parallelism (μm)

    100

    Straightness Accuracy (μm)

    3

    Allowable Loading (Kgf)

    3

    Weight (Kg)

    1

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
