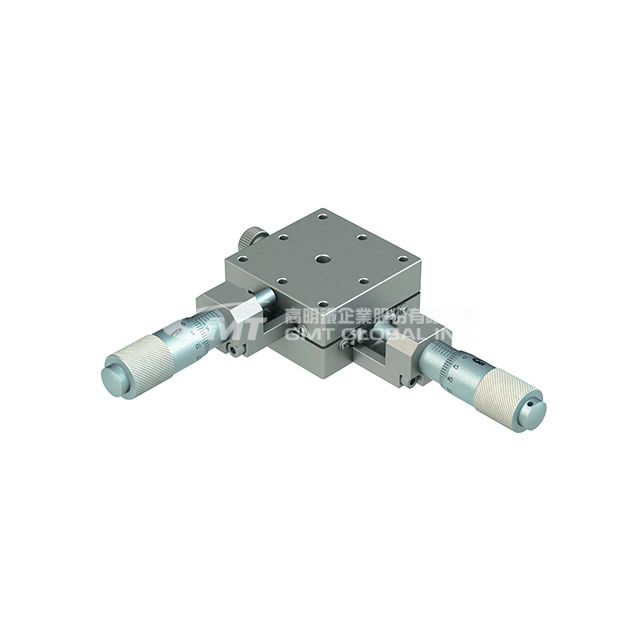

    MYW40-SC


    XY axis manual stage – Thin type
    Dual axes-XY axis
    Table size : 40 (mm)
    Travel stroke : ±6.5 (mm)
    Feed position-Central feeding
    ★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.
    ★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
    ★ Material- Stainless steel
    SKU: MYW40-SC
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.22

    Model No.

    MYW40-SC

    Specification

    Table Size (mm)

    40 X 40

    Axis

    XY-Axis

    Feed Position

    Central

    Travel Stroke (mm)

    ± 6.5

    Micrometer Min. Reading (μm)

    10

    Straightness Accuracy (μm)

    3

    Allowable Loading (Kgf)

    9

    Weight (Kg)

    0.34

    Material

    SUS 440C

    Surface Finish

    Electroless Nickel Plating

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
