    MYW40-AC


    XY axis manual stage-Super thin type
    Dual axis-XY axis
    Table size : 40 (mm)
    Travel stroke : ±6.5 (mm)
    Feed position-Central feeding
    ★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
    ★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
    ★ Material- Aluminum alloy

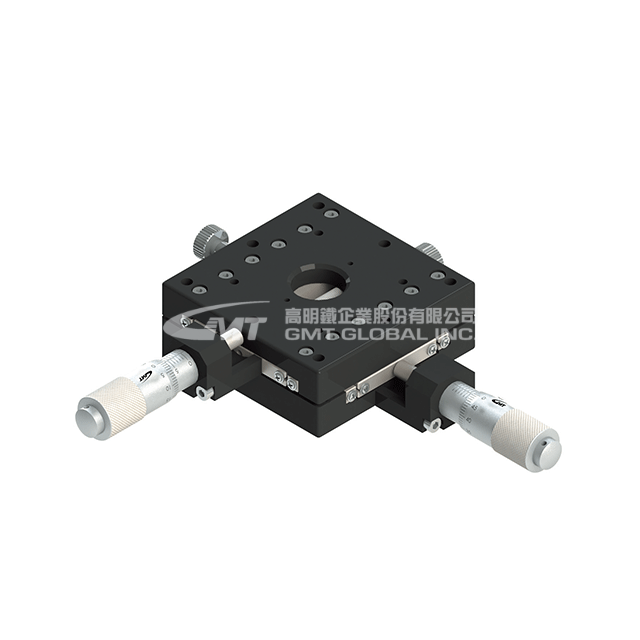

    This product pic. shows as MYW60-AC.

    SKU: MYW40-AC
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.15

    Model No.

    MYW40-AC

    Specification

    Table Size (mm)

    40 X 40

    Axis

    XY-Axis

    Feed Position

    Central

    Travel Stroke (mm)

    ± 6.5

    Micrometer Min. Reading (μm)

    10

    Straightness Accuracy (μm)

    3

    Allowable Loading (Kgf)

    1

    Weight (Kg)

    0.2

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position
