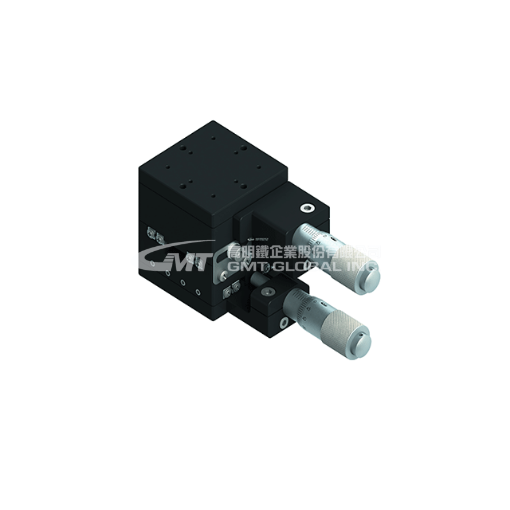

MYCP40-A

★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
★ Material- Aluminum alloy

SKU: MYCP40-A

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.4.14

Model No.		MYCP40-A
Specification	Table Size (mm)	40 X 40
	Axis	XY-Axis
	Travel Stroke (mm)	± 6.5
	Micrometer Min. Reading (μm)	10
	Straightness Accuracy (μm)	3
	Allowable Loading (Kgf)	1.8
	Weight (Kg)	0.28
	Material	Aluminum Alloy
	Surface Finish	Black Anodized

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages
