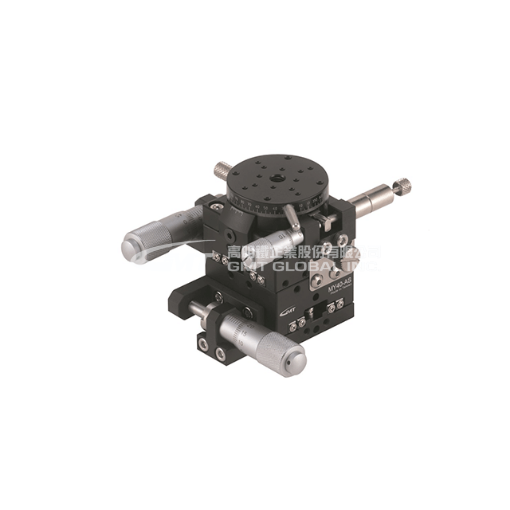

    MXYR38-A


    Multiple axis manual stage
    Multiple axis-XYθ axis
    Table size : Ø38(mm)
    ★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.
    ★ Transmission Parts-Micrometer head (unit-0.01mm) It is suitable for precise tuning.
    ★ Material- Aluminum alloy
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.18

    Model No.

    MXYR38-A

    Specification

    Multiple Axes - Base

    MY40-AS

    Multiple Axes - Middle

    N / A

    Multiple Axes - Top

    MR38-A

    Table Size (mm)

    Ø 38

    Travel Stroke - X Axis (mm)

    ± 6.5

    Travel Stroke - Y Axis (mm)

    ± 6.5

    Travel Stroke - Z Axis (mm)

    N / A

    Travel Stroke - θ Axis (°)

    Coarse:360°

    Fine:±5°

    Allowable Loading (Kgf)

    1

    Weight (Kg)

    0.42

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
