MXG4-VM

α axis Dovetail Goniometer Stage
Single axis-α axis
Axis direction : α&β axis
Table size : 40(mm)
Travel stroke : ±4°、±7°
★ Guide- V-groove
★ Transmission parts- Micrometer
★ Material – Aluminum Alloy

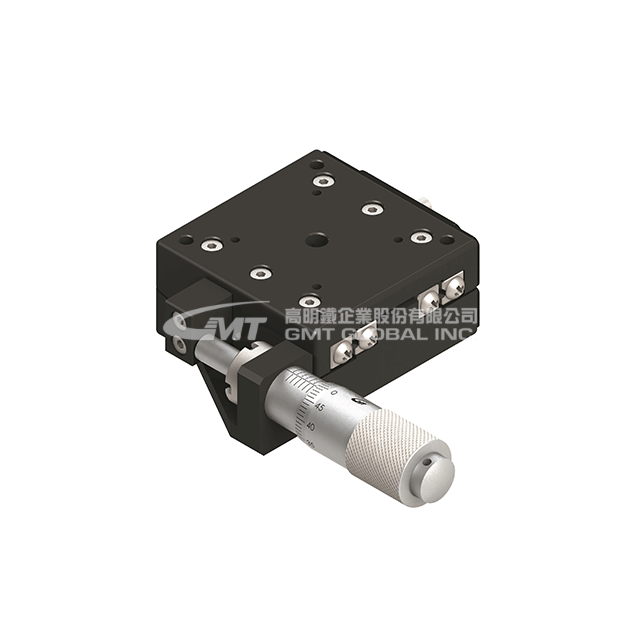

★This product pic. shows as MXG4-60VM.

SKU: MXG4-40VM

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Specifications
Contact Us

Update：2022.5.10

Model No.		MXG4-40VM	MXG4-60VM	MXG4-80VM
Specification	Table Size (mm)	40 X 40
	Axis	α-Axis
	Feed Position	Side
	Height of Rotation Center H (mm)	40	60	80
	Travel Stroke (mm)	± 7°	± 4°	± 4°
	Minimum Reading	0.1° / Veriner
	Micrometer Minimum Reading	≒ 40"	≒ 29"	≒ 22"
	Allowable Loading (Kgf)	3
	Weight (Kg)	0.15	0.15	0.15
	Material	Aluminum Alloy
	Surface Finish	Black Anodized

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages
