    MX30-SS-28


    X axis manual stage
    Single axis-X axis
    Table size : 30 (mm)
    Travel stroke : ±3.2 (mm)
    Feed position-Side feeding
    ★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.
    ★ Transmission Parts-Feeding screw. It is suitable for simple precise moving.
    ★ Material- Stainless steel

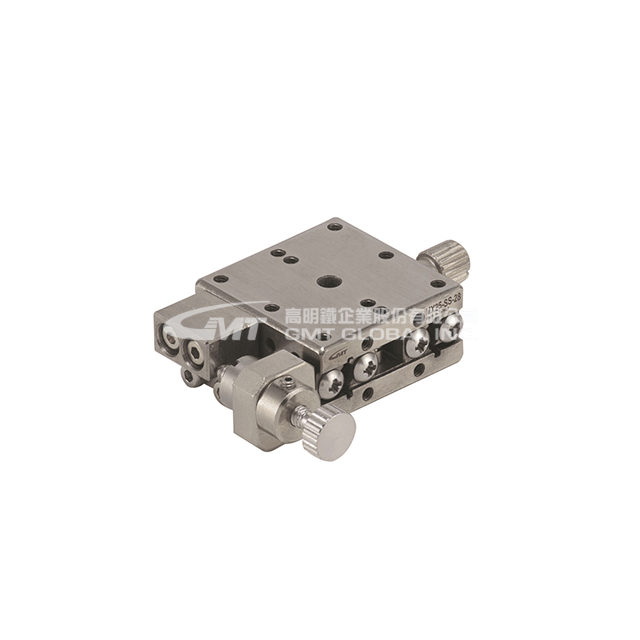

    This product pic. shows as MX25-SS-28.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.22

    Model No.

    MX30-SS-28

    Specification

    Table Size (mm)

    30 X 30

    Axis

    X-Axis

    Feed Position

    Side

    Travel Stroke (mm)

    ± 3.2

    Movement Per Knob Rotation (mm)

    0.5

    Straightness Accuracy (μm)

    3

    Allowable Loading (Kgf)

    6

    Weight (Kg)

    0.95

    Material

    SUS 440C

    Surface Finish

    Electroless Nickel Plating

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
