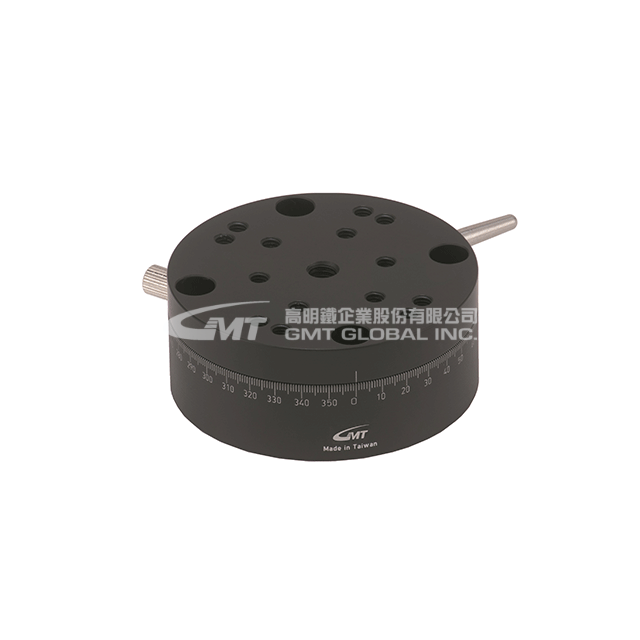

    MRE60-A


    θ axis Rotary stage – Economy type
    Single axis-θ axis
    Table size : Ø60 (mm)
    ★ Guide-brass rotation interface
    ★ Transmission parts - Shifter
    ★ Material-Aluminum alloy
    ★ General connective to MC1B、MC2B、MC4B、MC1C each other.
    SKU: MRE60-A
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.5.9

    Model No.

    MRE60-A

    Specification

    Table Size (mm)

    Ø 60

    Travel Stroke (mm)

    Cursory:360°

    Micrometer Min. Reading

    1° / Vernier

    Offset (Eccentric) (mm)

    0.05

    Allowable Loading (Kgf)

    7

    Weight (Kg)

    0.2

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
