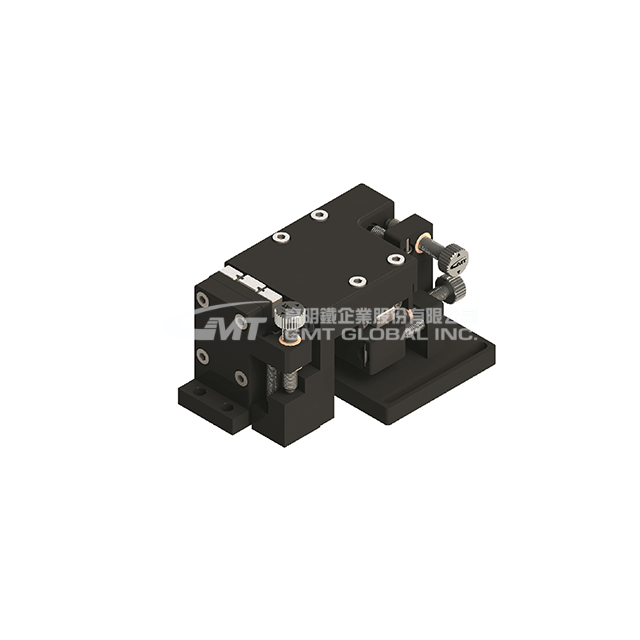

<span style="font-size: 12pt;">XYZ axis manual stage-Micropositioner</span> <br /><span style="font-size: 12pt;">Multiple axis-XYZ axis</span> <br /><span style="font-size: 12pt;">Table size : 20x20、20x35 (mm)</span> <br /><span style="font-size: 12pt;">Travel stroke : Please refer to the specifications. <br /><span style="font-size: 12pt;">★ Guide-Crossed Roller Guide. It is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy. It is suitable for limited stroke linear motion system with high rigidity, mid-hard load and spry moment.</span> <br /><span style="font-size: 12pt;">★ Transmission Parts-Feeding screw It is suitable for simple precise moving.</span> <br /><span style="font-size: 12pt;">★ Material- Aluminum alloy</span>">
Update:2018.06.11
Model no. | Table size (mm) | Travel stroke (mm) | Feeding | Straightness Accuracy (μm) | Loading (kgf) | Weight |
MPS20-AMR(L) | 20x20 | ±3.0 | 0.5 | 3 | 1 | 0.11 |
MPS2035-AMR(L) | 20x35 | ±5.0 | 0.5 | 3 | 1.5 | 0.21 |
The Main Feeding Mode of Mini Stages | |||
Main Feeding Mode | Characteristics | A Crcle Movement of Handle Rotation | Applied for Guiding Device |
●Suitable for high speed mass feed. ●Not suitable for precise positioning.
| 17~20 mm | ● Dovetail | |
Feeding Screw
| ● Use precise threadscrew pitch to proceed simple precise moving. | 0.25~1 mm | ● Dovetail ● Crossed roller ●Linear ball bearing |
Micrometer Head | ● Precise Reading Unit: 0.01mm is suitable for precise tuning. | 0.5 mm | ●Dovetail ● Crossed roller ● Linear ball bearing |
● Divided into rough moving (general feeding) and slight moving (micro feeding) use. ● It’s a special feeding device and a bit costly. ● Differential motion structure for slightly transmission. | Coarse tuning:0.5 mm Fine tuning:0.025mm | ●Linear ball bearing ● Crossed roller |
Feeding Position |
|
