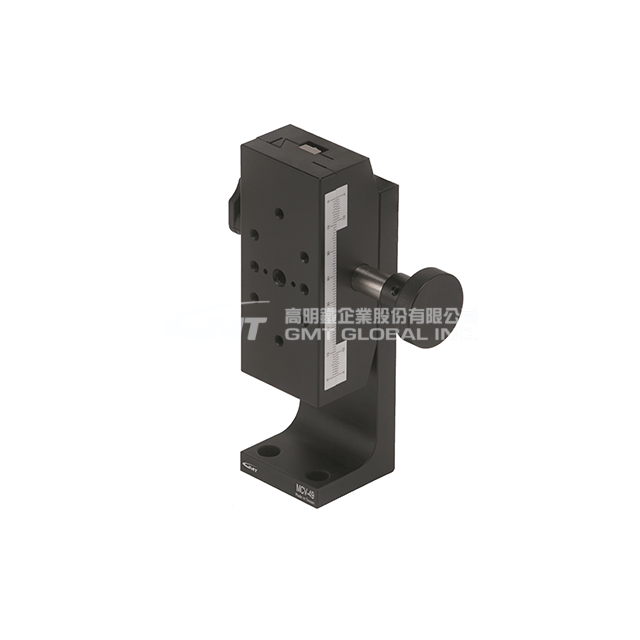

    MCV-49


    Z axis manual stage
    Single axis-Z axis (up & down stroke、only up stroke)
    Single knob、Dual knob
    Travel stroke : ±30 (mm)
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Rack and pinion. It is suitable for high speed mass feed.
    ★ Material- Aluminum Alloy
    SKU: MCV-49
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.29

    Model No.

    MCV-49

    MCV-49W

    MCV-49L

    MCV-49WL

    Specification

    Table Size (mm)

    40 X 90

    Axis

    Z-Axis

    Knob Type

    Single

    Dual

    Single

    Dual

    Travel Stroke (mm)

    ± 30

    Micrometer Minimum Reading

    0.1 mm / Veriner

    Straightness Accuracy (μm)

    30

    Allowable Loading (Kgf)

    2

    Weight (Kg)

    0.47

    0.5

    0.45

    0.47

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
