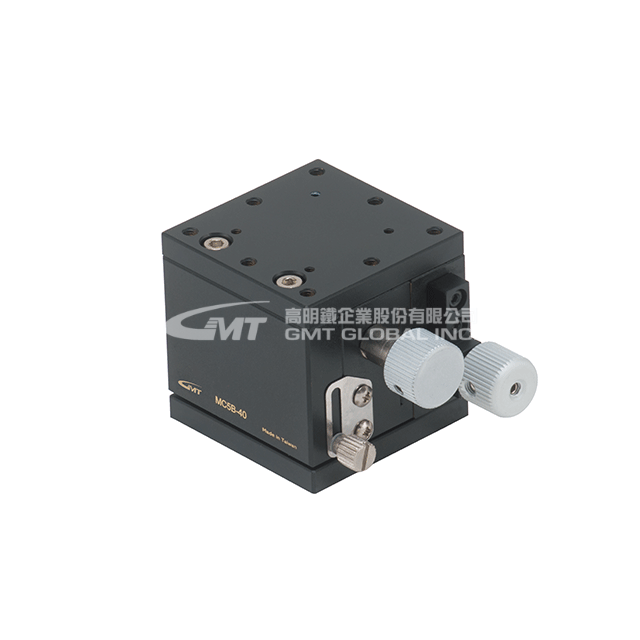

    MC5B-40


    XZ axis manual stage - Horizontal type
    Dual axes-XZ axis
    Table size : 40 (mm)
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- X axis-Feeding screw. It is suitable for simple precise tuning.
    ★ Transmission Parts- Z axis-Rack and pinion. It is suitable for high speed mass feed.
    ★ Material-Brass Alloy
    SKU: MC5B-40
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.5.9

    Model No.

    MC5B-40

    Specification

    Table Size (mm)

    40 X 40

    Travel Stroke (mm)

    X-Axis:± 7

    Z-Axis:+ 10

    Movement Per Knob Rotation (mm)

    X-Axis:0.5

    Z-Axis:≒ 14

    Straightness Accuracy (μm)

    30

    Allowable Loading (Kgf)

    1

    Weight (Kg)

    0.51

    Material

    Brass Alloy

    Surface Finish

    Black Fluororesin Finished

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
