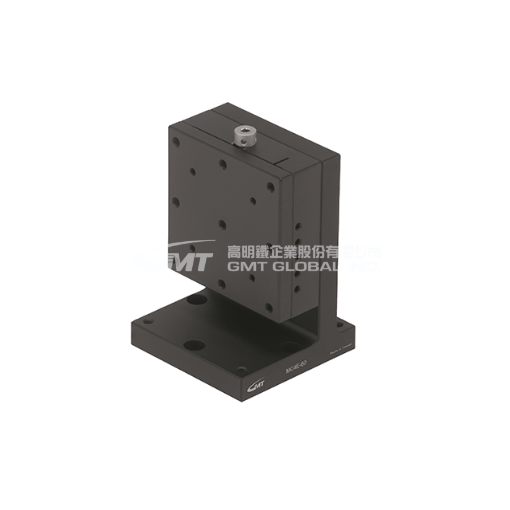

    MC4E-60


    Z axis manual stage
    Single axis-Z axis – (X axis + L bracket)
    Travel stroke : ±7 (mm)
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Feeding screw (Hex. Wrench type) It is suitable for simple precise tuning.
    ★ Material- Brass Alloy
    SKU: MC4E-60
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.5.4

    Model No.

    MC4E-60

    Specification

    Table Size (mm)

    60 X 60

    Axis

    Z-Axis

    Travel Stroke (mm)

    ± 7

    Micrometer Minimum Reading

    N / A

    Straightness Accuracy (μm)

    30

    Allowable Loading (Kgf)

    2

    Weight (Kg)

    0.65

    Material

    Brass Alloy

    Surface Finish

    Black Fluororesin Finished

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
