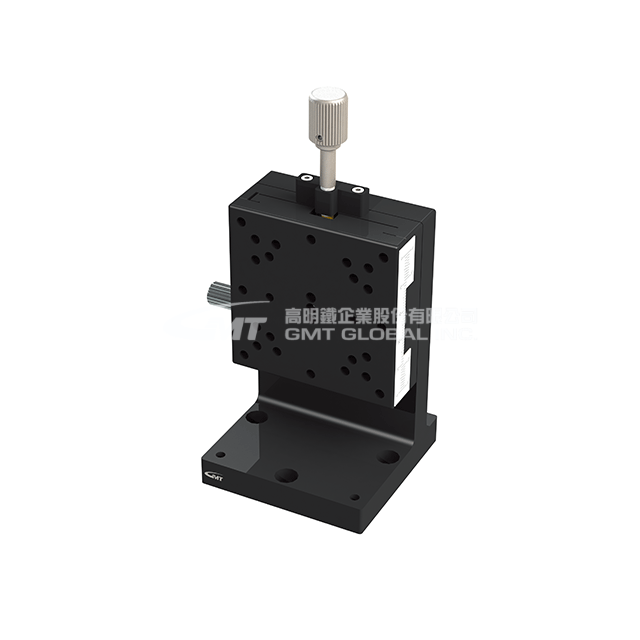

    MC4A-A60


    Z axis manual stage
    Single axis-Z axis
    Travel stroke : ±21 (mm)
    Feed position-Central feeding
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Feeding screw. It is suitable for simple precise tuning.
    ★ Material- Aluminum Alloy
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.26

    Model No.

    MC4A-A60

    Specification

    Table Size (mm)

    60 X 60

    Axis

    Z-Axis

    Feed Position

    Central

    Travel Stroke (mm)

    ± 21

    Movement Per Knob Rotation (mm)

    4.2

    Micrometer Minimum Reading

    0.1 mm / Veriner

    Straightness Accuracy (μm)

    30

    Allowable Loading (Kgf)

    2.1

    Weight (Kg)

    0.42

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
