    MC2E-40


    XY axis manual stage
    Dual axis-XY axis
    Travel stroke : ±5 (mm)
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Feeding screw (Hex. Wrench type) It is suitable for simple precise tuning.
    ★ Material- Brass Alloy

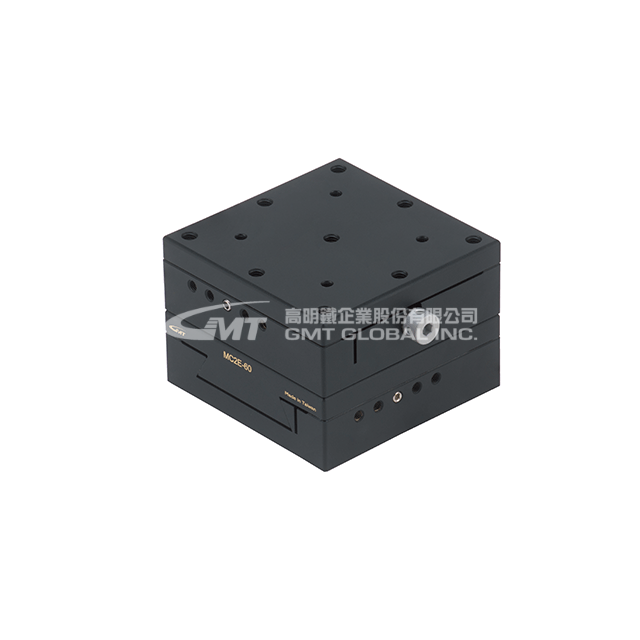

    This product pic. shows as MC2E-60.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.5.4

    Model No.

    MC2E-40

    Specification

    Table Size (mm)

    40 X 40

    Axis

    XY-Axis

    Travel Stroke (mm)

    ± 5

    Micrometer Minimum Reading

    N / A

    Straightness Accuracy (μm)

    30

    Allowable Loading (Kgf)

    2.8

    Weight (Kg)

    0.38

    Material

    Brass Alloy

    Surface Finish

    Black Fluororesin Finished

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
