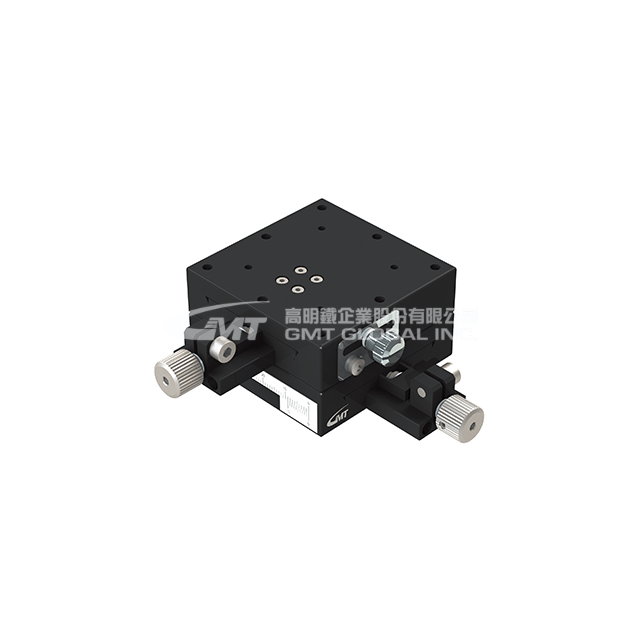

    MC2A-60CL


    XY axis manual stage
    Dual axes-XY axis
    Travel stroke : ±9 (mm)
    Feed position-Central feeding
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Feeding screw. It is suitable for simple precise tuning.
    ★ Material- Brass Alloy
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.26

    Model No.

    MC2A-60CL

    Specification

    Table Size (mm)

    60 X 60

    Axis

    XY-Axis

    Feed Position

    Central

    Travel Stroke (mm)

    ± 9

    Movement Per Knob Rotation

    0.5

    Micrometer Minimum Reading

    0.1 mm / Veriner

    Straightness Accuracy (μm)

    30

    Allowable Loading (Kgf)

    3.4

    Weight (Kg)

    0.98

    Material

    Stage Body:Brass Alloy

    Feeding Screw Knob:Aluminum

    Surface Finish

    Black Fluororesin Finished

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
