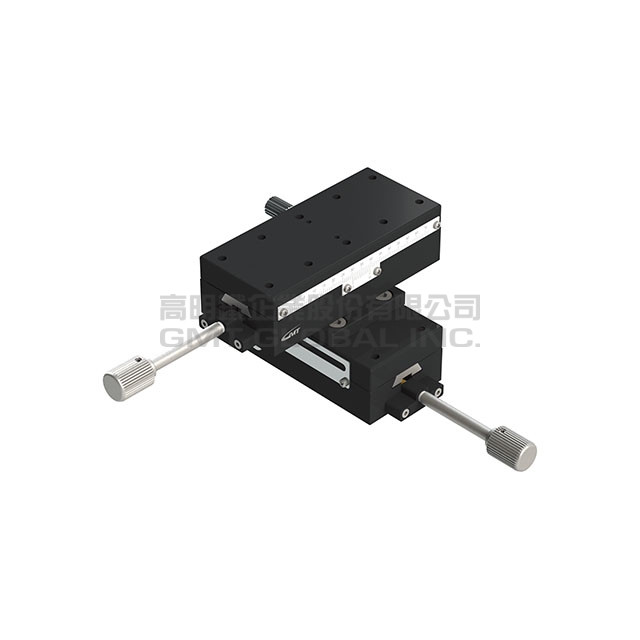

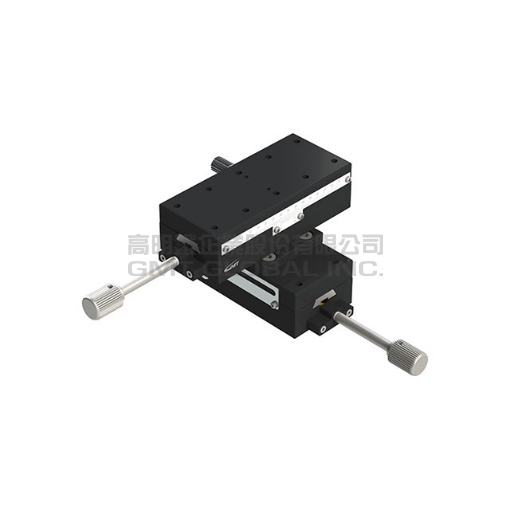

MC2A-49S

XY axis manual stage
Dual axes-XY axis
Travel stroke : ±35 (mm)
Feed position-Central feeding
★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
★ Transmission Parts- Feeding screw. It is suitable for simple precise tuning.
★ Material- Aluminum Alloy

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.4.26

Model No.		MC2A-49S
Specification	Table Size (mm)	40 X 90
	Axis	XY-Axis
	Feed Position	Central
	Travel Stroke (mm)	± 35
	Movement Per Knob Rotation	4.2
	Micrometer Minimum Reading	0.1 mm / Veriner
	Straightness Accuracy (μm)	30
	Allowable Loading (Kgf)	3.72
	Weight (Kg)	0.62
	Material	Aluminum Alloy
	Surface Finish	Black Anodized

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages

MC2A-49S
