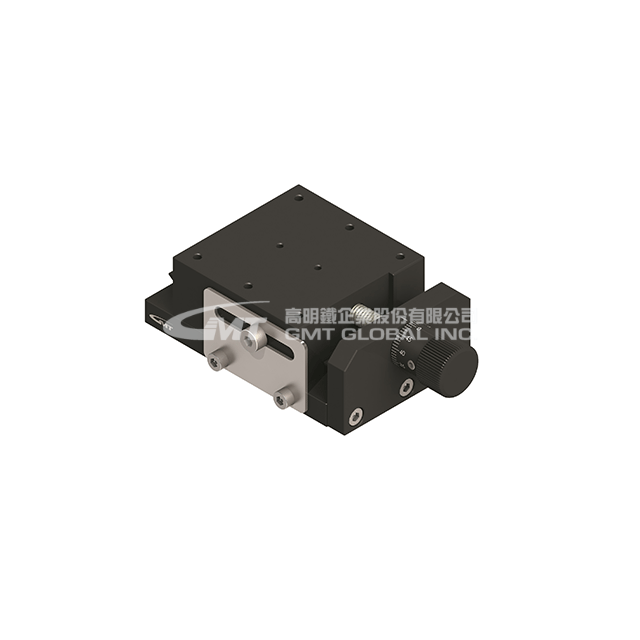

MC1G-535C

X axis manual stage
Single axis-X axis
Table size : 50x50 (mm)
Travel stroke : ±16 (mm)
★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
★ Transmission Parts- Feeding screw. It is suitable for simple precise tuning.
★ Material- Aluminum Alloy

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Specifications
Contact Us

Update：2022.4.26

Model No.		MC1G-535C
Specification	Table Size (mm)	50 X 50
	Base Dimensions (mm)	50 X 89
	Movement Per Knob Cycle (mm)	0.5
	Knob Minimum Reading	0.01 mm / Veriner
	Travel Stroke (mm)	± 16
	Straightness Accuracy (μm)	30
	Parallel (μm)	50
	Dynamic Parallel (μm)	40
	Allowable Loading (Kgf)	5
	Weight (Kg)	0.29
	Material	Aluminum Alloy
	Surface Finish	Black Anodized
