MC1A-49

X axis manual stage
Single axis-X axis
Travel stroke : ±35 (mm)
Feed position-Central feeding
★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
★ Transmission Parts- Feeding screw. It is suitable for simple precise tuning.
★ Material- Aluminum Alloy

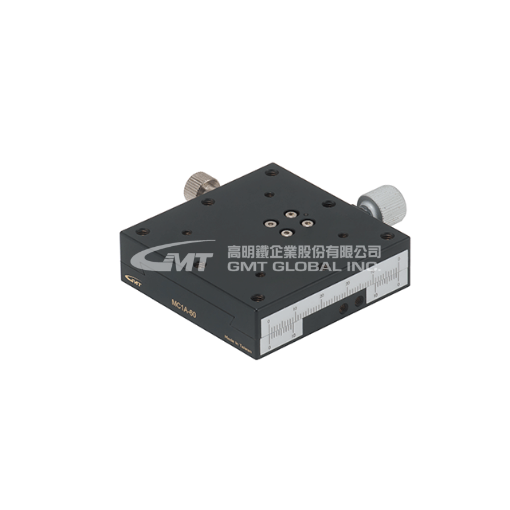

★This product pic. shows as MC1A-60.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.4.25

Model No.		MC1A-49L	MC1A-49S
Specification	Table Size (mm)	40 X 90
	Axis	X-Axis
	Feed Position	Central
	Travel Stroke (mm)	± 35
	Micrometer Minimum Reading	0.1 mm / Veriner
	Straightness Accuracy (μm)	30
	Dynamic Straightness (μm)	N / A	30
	Dynamic Parallelism (μm)	N / A	30
	Allowable Loading (Kgf)	3	Horizontal：4 Vertical：2
	Weight (Kg)	0.19	0.29
	Material	Aluminum Alloy
	Surface Finish	Black Anodized

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages

MC1A-49
