    MC1A-25


    X axis manual stage
    Single axis-X axis
    Table size : Please refer to the specifications.
    Travel stroke : ±3 (mm)
    Feed position-Central feeding
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Feeding screw. It is suitable for simple precise tuning.
    ★ Material- Brass Alloy、Aluminum Alloy

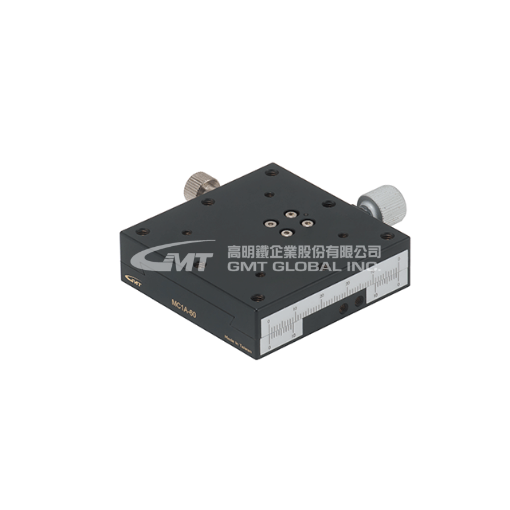

    This product pic. shows as MC1A-60.

    SKU: MC1A-25
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.4.25

    Model No.

    MC1A-25

    Specification

    Table Size (mm)

    25 X 25

    Travel Stroke (mm)

    ± 3

    Micrometer Minimum Reading

    0.1 mm / Veriner

    Straightness Accuracy (μm)

    30

    Allowable Loading (Kgf)

    3

    Weight (Kg)

    0.07

    Material

    Stage Body:Brass Alloy

    Feeding Screw Knob:Aluminum

    Surface Finish

    Black Fluororesin Finished

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
