M6E-2200B-R

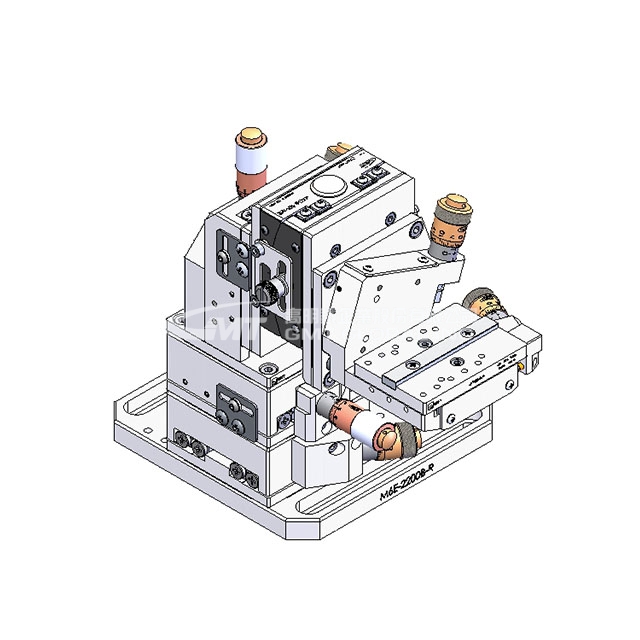

★ It is consisted XYZ manual positioning stage, a tilt stage (θx, θy) and a goniometer stage(θz). It is a 6-axis high resolution positioning stage to be designed to perform the single-fiber positioning or as the application for industry of optical waveguide.
★ Available potion with ordering code - M5E-2000B-R-[XYZ module: MXYZ60-ACSR、Tilt module: MTR60-45R、α-axis stage: MXG6-50VMR]

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D DOWNLOADS
Contact Us

Update：2022.7.21

Model No.			M6E-2200B-R
Specification	Axis		X	Y	Z	θx	θy	θz
	Travel Stroke	Rough Tuning	± 6.5 mm	± 6.5 mm	± 6.5 mm	± 3 °	± 3 °	± 4 °
		Fine Tuning	± 0.3 mm	± 0.3 mm	± 0.3 mm
	Accuracy	Rough Tuning	10 μm	10 μm	10 μm	≒ 29.3" / Vernier	≒ 27.8" / Vernier	≒ 33" / Vernier
		Fine Tuning	0.5 μm	0.5 μm	0.5 μm

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages

M6E-2200B-R
