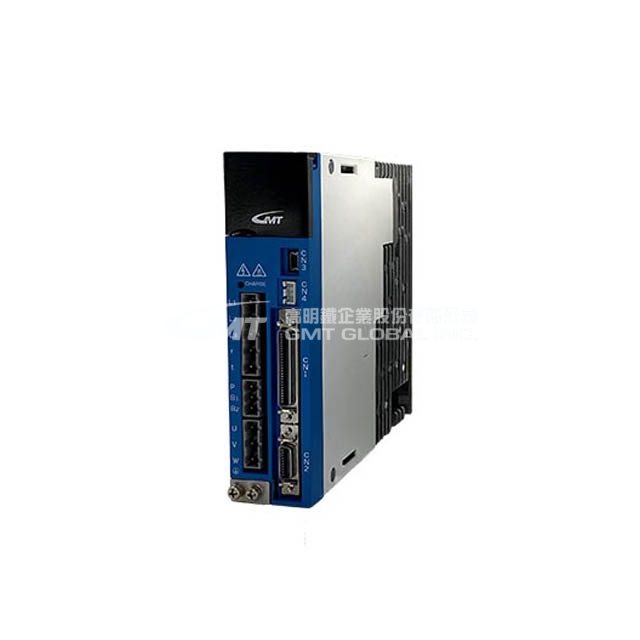

    KE-SERVO


    ★ Standard Servomotor Driver:multiple operating and control modes.
    ★ Built-in DIO Control:the user can plan simple sequential control in advance.
    ★ 16-Set Positioning Table:the motor performs pre-set movement control through I/O.
    ★ Protection:the built-in power/circuit protection cuts off the loop as soon as it goes beyond the rated current.
    ★ 2 Sets of notch filters:improve the mechanical low-frequency resonance and increase the life span of the mechanism and the motor.

    Please click here to download the application software ⬇️

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.11.3

    Model No.

    KE - AC Servo Driver

    Specification

    Power

    Main Loop

    Single Phase:190 ~ 240V 50 / 60 Hz

    Control Loop

    Single Phase:190 ~ 240V 50 / 60 Hz

    Control Method

    IGBT PWM Sinusoidal Wave Drive

    Encoder Feedback

    250 P / r (10000 Resolution) Relative Encoder

    Control Signal

    Input

    11 Input

    Output

    6 Output

    Analog Signal

    Input

    3 sets Input (12 bit A / D)

    Pulse Signal

    Input

    4 Input,Parameter decided to use linear drive or high speed photo-coupler input

    Output

    4 Output

    (Linear Drive:3 sets Output;Open-Collector:1 Output)

    Communication Function

    USB / RS485

    1:1 with mini USB Interface

    1:32 with RS485 Interface

    Regeneration

    Built-In 10W Regenerative Resistor

    Control Mode

    (1) Position Control

    (2) Speed Control

    (3) Torque Control

    (4) Position / Speed Control

    (5) Position / Torque Control

    (6) Speed / Torque Control

    Function

    Position

    Pulse Input

    Linear Driver Indenpendent Interface:2 Mpps

    Linear Driver:500 Kpps

    Open-Collector:200 Kpps

    Analog Input

    Used in CW and CCW Independent Torque Limit (3V / Rated Torque)

    DIO

    4 bit Position Input,16 Internal Position

    Tool Magazine / Indexing

    6 bit Position Input,6 bit Status Output,Available to use 59 Positions

    Speed

    Analog Input

    Voltage Ratio is set up by Parameter,Max. Input Voltage ±10V and 6V / Rated Rotational Speed (Default Setup)

    Speed Control Range

    1:5000

    Internal Speed Command

    8 steps Speed are set up by Parameter

    Slow-Start / Slow-Stop Function

    Acceleration and deceleration could be set up individually

    0 ~ 10 sec / 1000 rpm,Could set up S-shape acceleration / deceleration

    ZERO-SPD

    ZERO-SPD Input could set up internal speed to 0

    Torque Control

    Analog Input

    Voltage Ratio is set up by Parameter,Max. Input Voltage ±10V and 3V / 100% Torque (Default Setup)
