    Right Angle Reducers


    ★Use in any direction and easy to install.
    ★High input speed and high output torque density.
    ★Low backlash and maintenance-free.
    ★Lower noise and lower vibration.

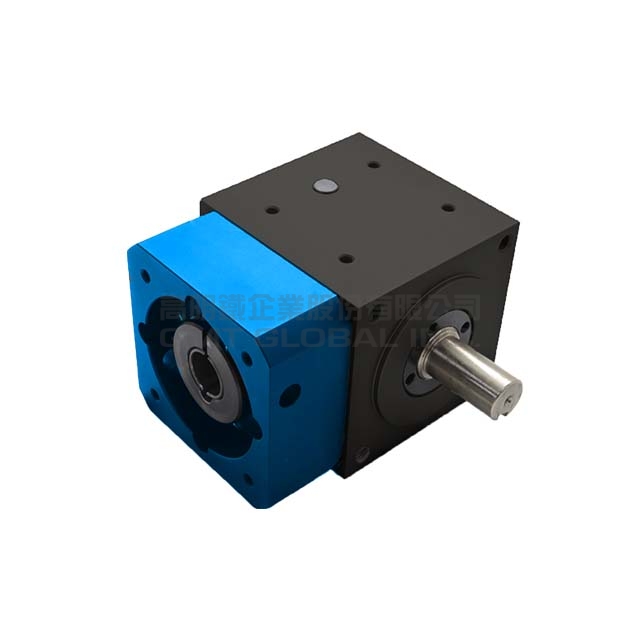

    This product pic. shows as GTS90, which is only compatible with servo motor.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2023.09.08

    Model No.

    GTS42-R2

    GTS42-R3

    GTS60-R1

    GTS60-R2

    GTS60-R3

    GTS90-R2

    GTS90-R3

    Spec.

    □42□42□60□60□60□90□90

    Rated Output Moment (N・m)

    Parameter

    19161424244840

    Rated Output Moment (N・m)

    Reduction Ratio

    2312323

    Rated Input Speed (rpm)

    1500150015001500150015001500

    Max. Input Speed (m)

    5000500050005000500050005000

    Backlash (arcmin)

    ≦6≦6≦6≦6≦6≦6≦6

    Torsional Rigidity (N.m/arcmin)

    2.52.56661212

    Allowable Radial Force (N)

    35035060060060010501050

    Allowable Axial Force (N)

    160160300300300550550

    Durability (H)

    (Continuous operation 10000)

    20000

    200002000020000200002000020000

    Effciency (%)

    ≧97%≧97%≧97%≧97%≧97%≧97%≧97%

    Protection Marking

    IP40IP40IP40IP40IP40IP40IP40

    Lubricant

    SyntheticSyntheticSyntheticSyntheticSyntheticSyntheticSynthetic

    Noise (dB)

    ≦65≦65≦65≦65≦65≦65≦65

    Weight (KG)

    0.60.61.31.31.32.92.9
