Update:2023.03.22

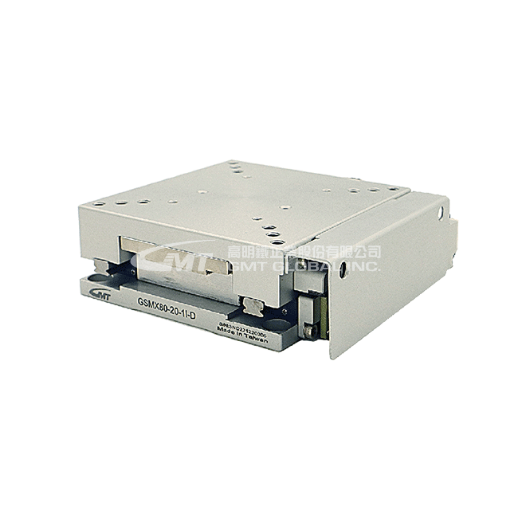

Model No.
GSMX60-20-A-DX
GSMX60-20-I-DX
Syetem
Mechanical Spec.
Table Size (mm)
60 X 80
Overall Width (mm)
71
Overall Height (mm)
25
Travel Stroke (mm)
20
Stage Material / Surface Treatment
Aluminum Alloy / Anodized
Rail
GS07N
Main Unit Weight (Kg)
0.5
Precision Spec.
Resolution (µm)
-
1
Max. Speed (mm / sec)
Positioning Presion (µm)
30
10
Repeatability Precision (µm)
± 5
± 1
Load Capacity (Kgf)
Parallelism (µm)
Dynamic Parallelism (µm)
5
Thrust (N)
12
Electrical Spec.
Driver Brand / Model
Oriental / CVD223BR-K
GMT / i-SERVO-ST-42M-GM
Sensor
Origin Sensor
Photoelectric sensor GMT-sensor
Limit Sensor
Power Voltage
24V ± 10%
Control Output
NPN open collector output under 24V 8mA
Output Control
Testing (sensing):output transistor OFF (closed)
Stage Side Connector
15-Pin male end connetor D-SUB
Controller Side Connector
N / A
Current
2A
Electrical resistance
1.2 ohm
Inductance
1.196 mh
Phase
2 phases
GMT has defined different axis as the following figuration according to the movement direction:
Horizontal movement direction is X and Y axis.
Vertical movement direction is Z axis.
Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.
Green arrows present the specified axis movement direction.
