Actuator GK2040

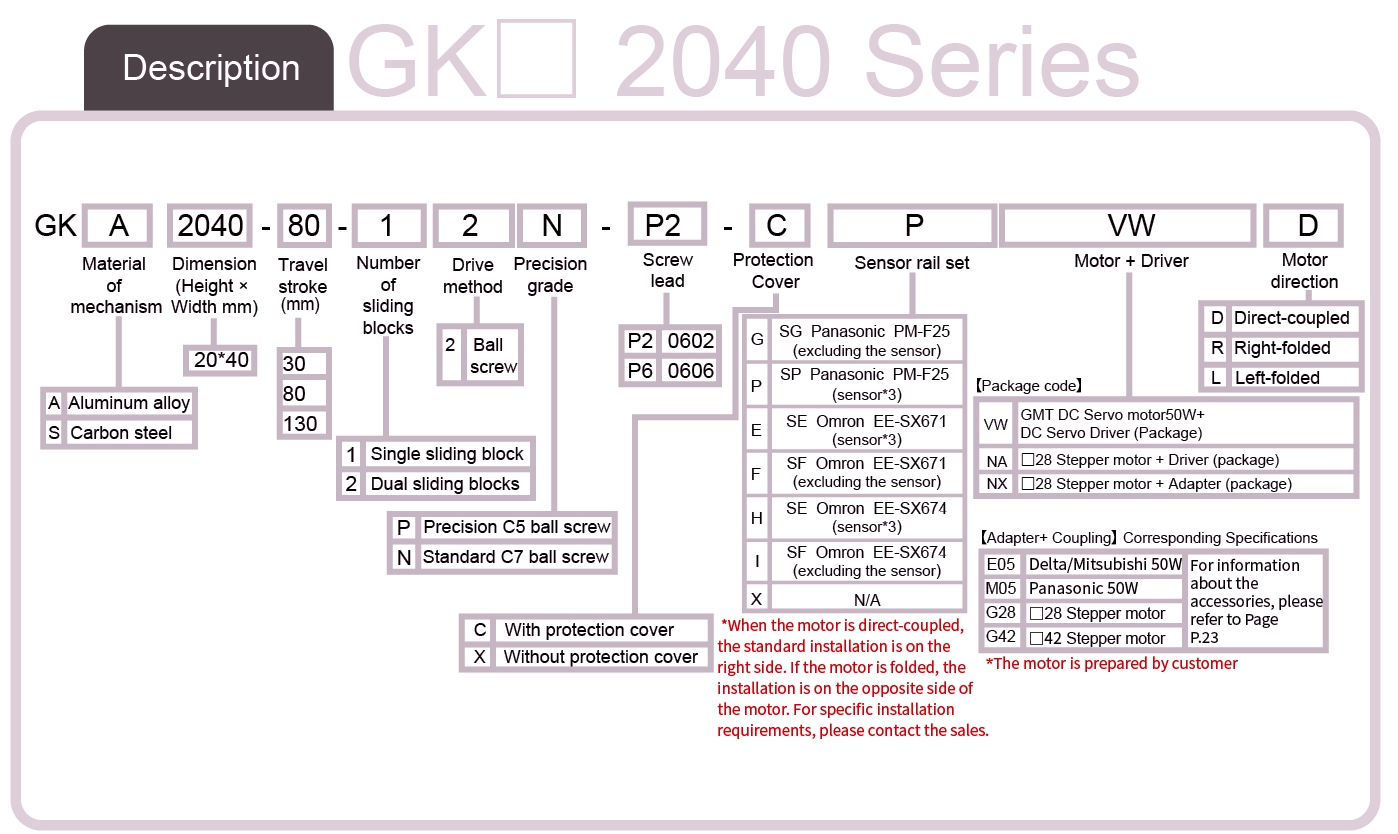

★Guiding type - Gothic arc - groove rail with linear ball bearing formed to a strong structure.
★Ball screw feeding is equipped high and easy changeable transmission, as well as it's high precision and life utility feature.
★Accuracy of Precision Type(P) and Standard(N) Type combined to various rail length for options fit to needs.
★Lightweight design from aluminum alloy material to save transportation budget and inconvenience.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Update：2023.11.23

Model No.		GKA2040-N GKS2040-N		GKA2040-P GKS2040-P
Mechanical Spec.	Size (H x W) (mm)	20 X 40
	Travel Stroke (mm)	30 、 80 、 130		30 、 80 、 130
	Drive Type	Ball Screw Ø6
	Lead (mm)	2	6	2	6
	Rail	Recirculating Linear Ball Guide
	Stage Material	A：Aluminum Alloy S：Carbon Steel
	Accuracy Level	N：Standard		P：Precision
Precision Spec. *2	Stepper Max. Speed (mm / sec) *1	40	120	40	120
	Servo Max. Speed (mm / sec) *1	100	300	100	300
	Positioning Precision (mm)	-		0.02
	Repeatability Precision (mm)	± 0.005		± 0.003
	Movement Paralleism (mm)	0.025		0.01
	Max. Torque (N・cm)	0.5		1.2
Stepper Electrical Spec.	Open-loop Driver	☐28，GTR22G-D
	Close-loop Driver	-
	Stage Side Connector	15-Pin male end connetor D-SUB
	Controller Side Connector	15-Pin female end connetor D-SUB

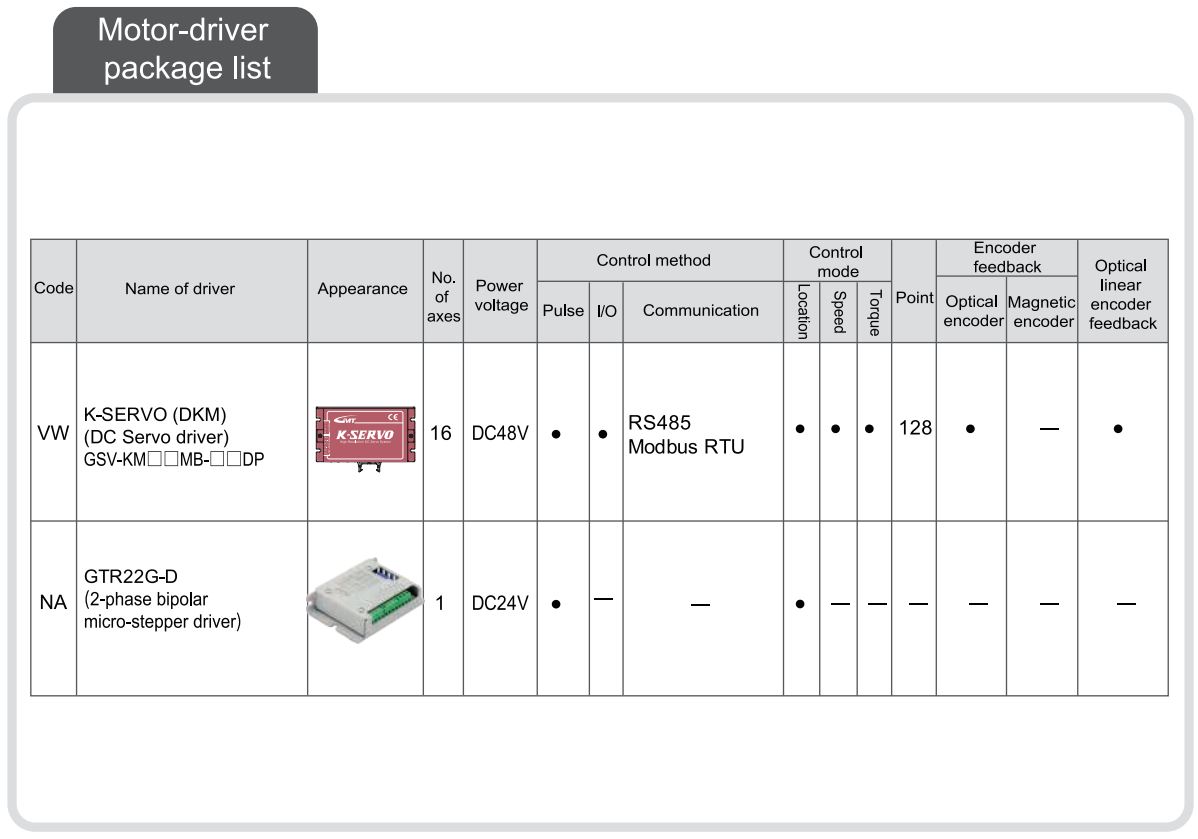

DC Servo Electrical Spec.	DC Servo Motor	50W：GSVM-D0BMD4
	DC Servo Driver	50W：K-SERVO (GSV-KM0BMR-48DP)
	Stage Side Connector	Manufacturer：TE Connectivity Power cord：172159-1+170355-1 (Male end) Encoder cable：172161-1+170365-1 (Male end)
	Controller Side Connector	Manufacturer：KST Power cord：E1510-RED (European Terminals) Manufacturer：JST Encoder cable：PHDR-12VS+SPHD-001T-P0.5 (Female end)

*1 The servo motor's maximum speed is calculated with 3000rpm and the stepper motor's maximum speed is calculated with 1200rpm.

*2 Without the folded parts installed, the accuracy of folded motor is measured when it is directly coupled with an actuator.
