    GIRO32 Electric Cylinder


    Sensor free available for 32 IO points controls.
    Integration of ball circulation with block system to perform minor inertial motion.
    Compact profile made from Aluminum frame with riveted rails.
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2023.11.07

    Stepper Motor

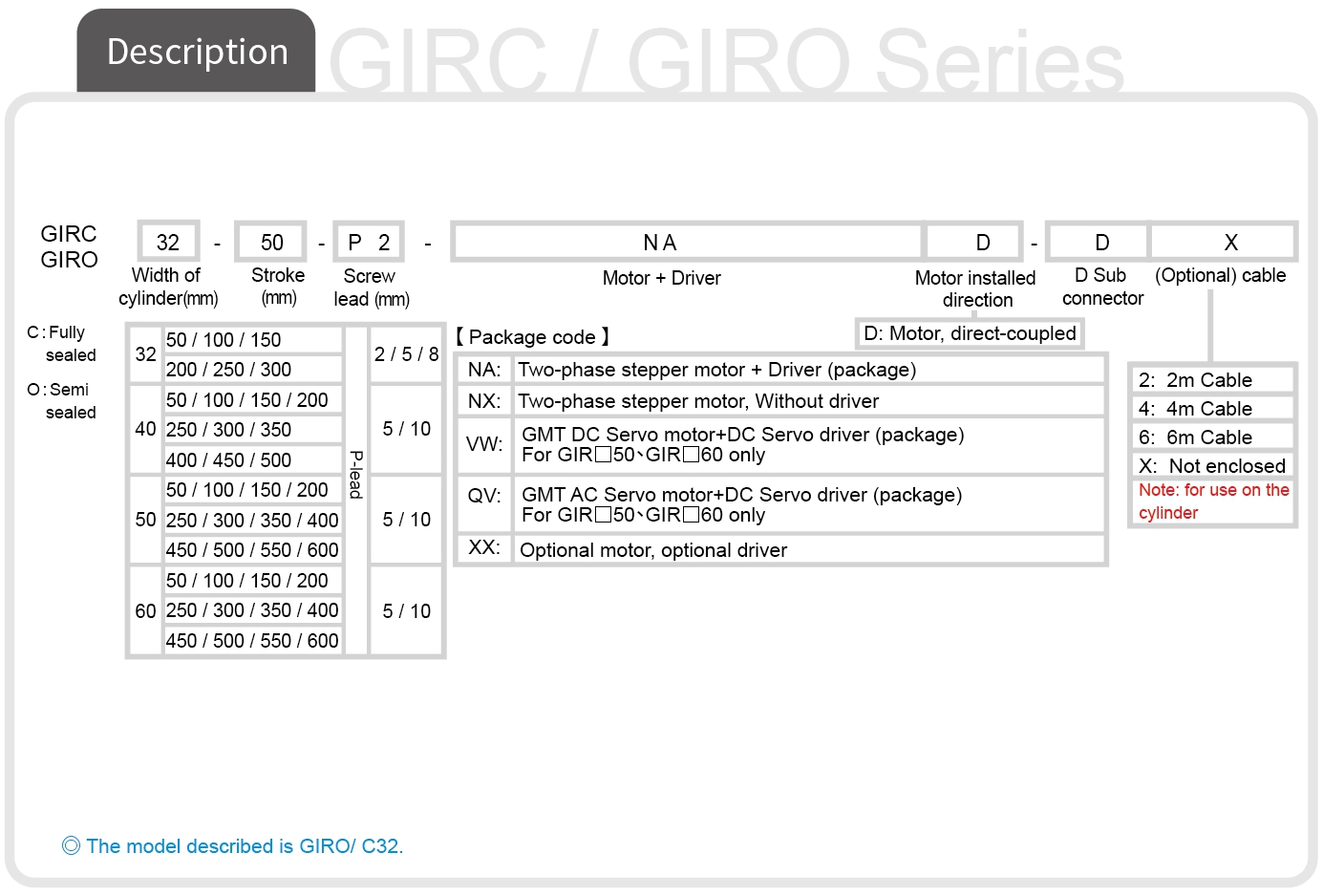

    Model No.

    GIRO32

    Mechanical Spec.

    Table Size (mm)

    32

    Travel Stroke (mm)

    50 ~ 300 (Per 50mm)

    Drive Type

    Ball Screw Ø8

    Lead (mm)

    2

    5

    8

    Rail

    Circular Linear Ball Guiding

    Stage Material

    Aluminum Alloy / Black Anodized

    Wiring Method

    N:Horizontal Type;V:Vertical Type

    Precision Spec.

    Max. Speed (mm/s)

    60

    120

    180

    Repeatability Precision (mm)

    ± 0.005

    Max. Thrust Force (N)

    42

    20

    14

    Horizontal Load (Kgf)

     3

    2

    1

    Vertical Load (Kgf)

    1.5

    1

    0.5

    Electrical Spec.

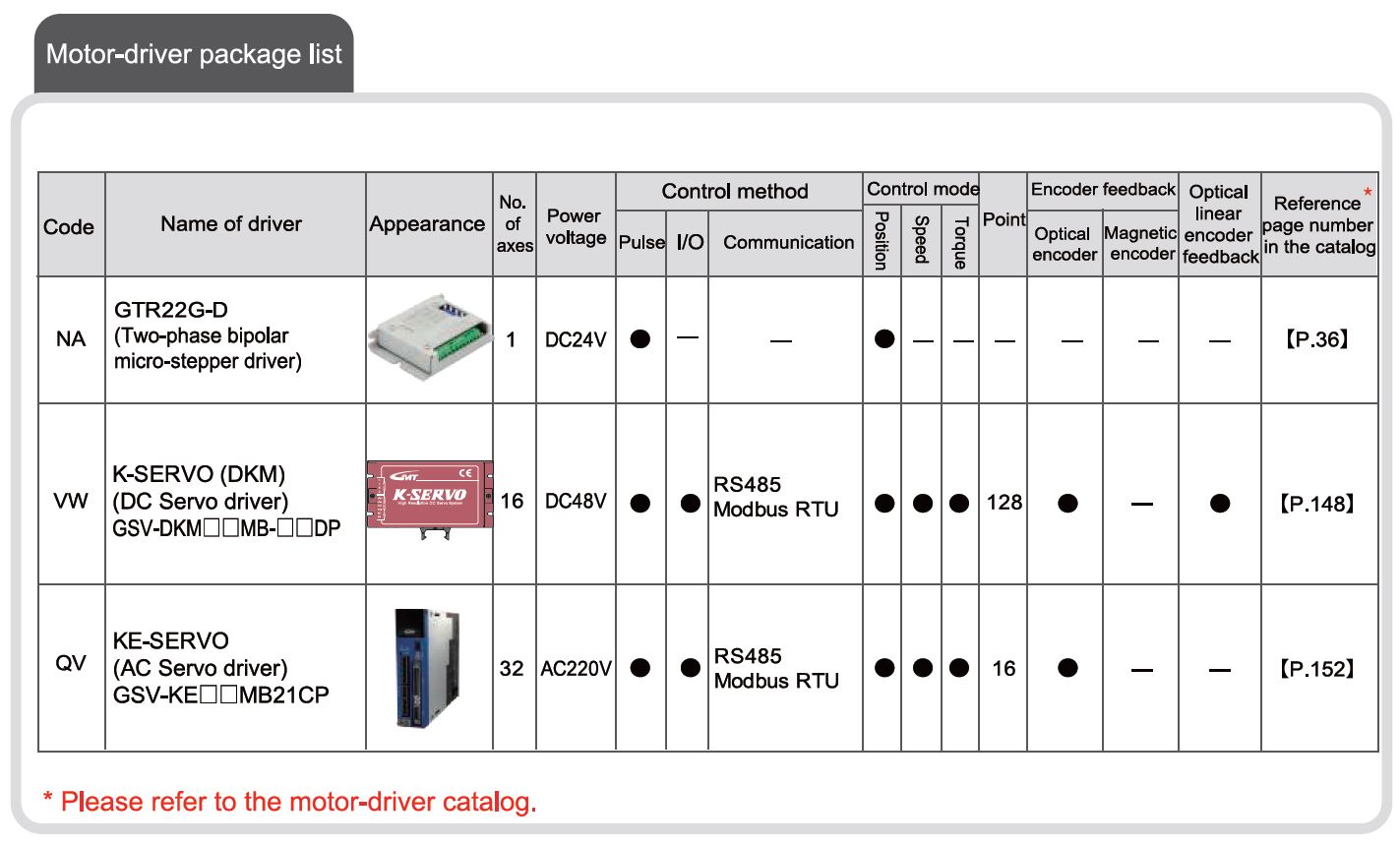

    Open-loop Driver

    ☐28,GTR22G-D

    Stage Side Connector

    15-Pin male connector D-SUB

    Controller Side Connector

    15-Pin female connector D-SUB
