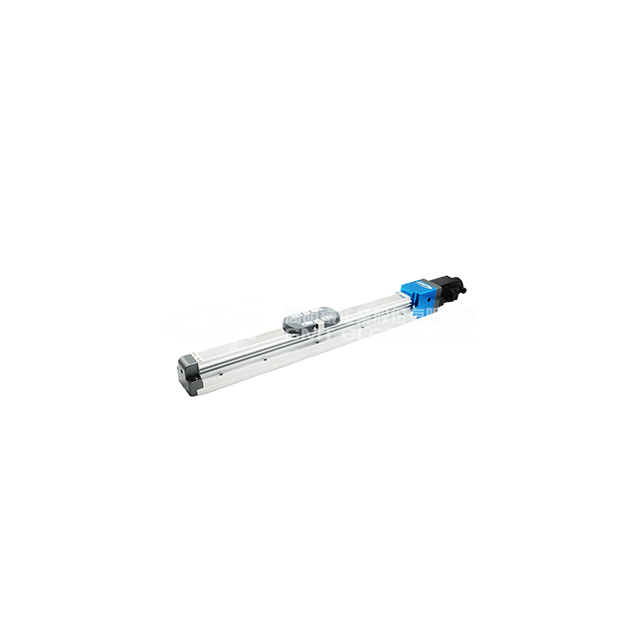

GESC5 Electric Cylinder

Used Aluminum body and steel rails, in order to achieve weight reduction.
With the slide table height highly consistent assembly of the motor, if the load is longer stroke, is not to be increased.
Travel stroke range : 50~800 mm (per 50 mm).
Dynamic permissible moment, rail and screw to maintain at the same level.
Return to the origin can be completed quickly.

Update：2023.11.07

Stepper / Servo Motor
Model No.			GESC5
Mechanical Spec.	Table Size (mm)		54
	Travel Stroke (mm)		50 ~ 800 ( Per 50mm)
	Drive Type		Ball Screw Ø10
	Lead (mm)		5	10
	Rail		Circular Linear Ball Guiding
	Stage Material		Aluminum Alloy / Black Anodized
	Wiring Method		N：Standard
Precision Spec.	Max. Speed (mm/s)		N / A
	Repeatability Precision (mm)		± 0.005
	Max. Thrust Force (N)		N / A
	Horizontal Load (Kgf)		30	15
	Vertical Load (Kgf)		10	5
Stepper Close-loop Precision Spec.	Max. Speed (mm/s)		100	200
	Repeatability Precision (mm)		± 0.005
	Max. Thrust Force (N)		260	130
	Horizontal Load (Kgf)		30	15
	Vertical Load (Kgf)		10	5
Stepper Close-loop Electrical Spec.	Stage Side Connector		15-Pin male connector D-SUB
	Controller Side Connector		15-Pin female connector D-SUB
Stepper Open-loop Precision Spec.	Max. Speed (mm/s)		100	200
	Repeatability Precision (mm)		± 0.005
	Max. Thrust Force (N)		180	90
	Horizontal Load (Kgf)		30	15
	Vertical Load (Kgf)		10	5
Stepper Open-loop Electrical Spec.	Open-loop Driver		☐42，GTR22G-D
	Stage Side Connector		15-Pin male connector D-SUB
	Controller Side Connector		15-Pin female connector D-SUB
DC Servo Precision Spec.	Max. Speed (mm/s)		Travel Stroke 50~550：250 mm/s Travel Stroke 600：225 mm/s Travel Stroke 650：200 mm/s Travel Stroke 700：175 mm/s Travel Stroke 750：150 mm/s Travel Stroke 800：125 mm/s If exceeding this speed, the module might be have serious resonance.	Travel Stroke 50~550：500 mm/s Travel Stroke 600：450 mm/s Travel Stroke 650：400 mm/s Travel Stroke 700：350 mm/s Travel Stroke 750：300 mm/s Travel Stroke 800：250 mm/s If exceeding this speed, the module might be have serious resonance.
	Repeatability Precision (mm)		± 0.005
	Max. Thrust Force (N)	50 W	169	84
		100 W	339	169
	Horizontal Load (Kgf)		30	15
	Vertical Load (Kgf)		10	5
DC Servo Electrical Spec.	DC Servo Motor	50 W	GSVM - D0BMD4
		100 W	GSVM - D01MD4
	DC Servo Driver	50 W	K-SERVO (GSV-DK0BMR-48DP)
		100 W	K-SERVO (GSV-DK01MR-48DP)
	Stage Side Connector		Manufacturer：TE Connectivity Power cord：172159-1 + 170366-1 (Male end) Encoder cable：172161-1 + 170365-1 (Male end)
	Controller Side Connector		Manufacturer：KST Power cord：E1510-RED (European Terminals) Manufacturer：JST Encoder cable：PHDR-12VS+SPHD-001T-P0.5 (Female end)
AC Servo Precision Spec.	Max. Speed (mm/s)		Travel Stroke 50~550：250 mm/s Travel Stroke 600：225 mm/s Travel Stroke 650：200 mm/s Travel Stroke 700：175 mm/s Travel Stroke 750：150 mm/s Travel Stroke 800：125 mm/s If exceeding this speed, the module might be have serious resonance.	Travel Stroke 50~550：500 mm/s Travel Stroke 600：450 mm/s Travel Stroke 650：400 mm/s Travel Stroke 700：350 mm/s Travel Stroke 750：300 mm/s Travel Stroke 800：250 mm/s If exceeding this speed, the module might be have serious resonance.
	Repeatability Precision (mm)		± 0.005
	Max. Thrust Force (N)		341	170
	Horizontal Load (Kgf)		30	15
	Vertical Load (Kgf)		10	5
AC Servo Electrical Spec.	AC Servo Motor		100W：GSVM-A01LC4
	AC Servo Driver		GSV-KE01MB21CP
	Stage Side Connector		Manufacturer：Tyco electronics Power cord：172167-1 (Male end) Encoder cable：172171-1 (Male end)
	Controller Side Connector		Manufacturer：Tyco electronics Power cord：172159-1 (Female end) Encoder cable：172163-1 (Female end)

GESC5 Electric Cylinder
