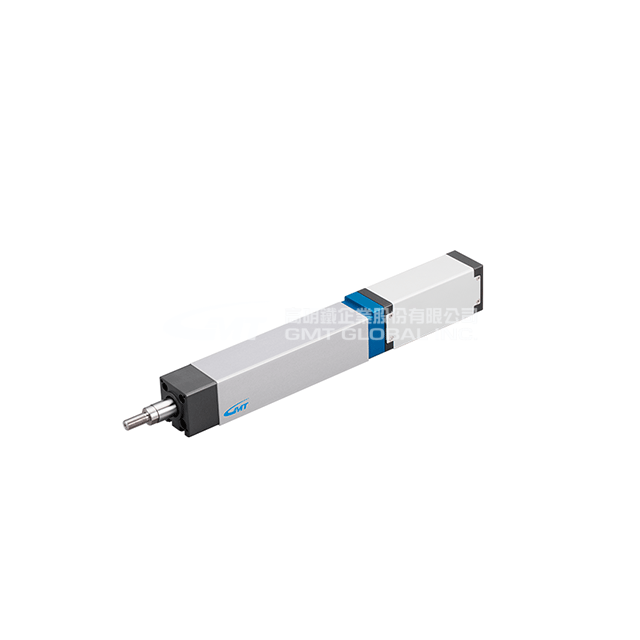

GECX60 Electric Cylinder

★Use ball screw drive and patented self-lubricating sleeve guide for low wear, high rigidity, high smoothness and high precision.
★The drive unit and drive control are all optional, reducing wiring and reducing the space required to use the drive and controller.
★Built-in patented hex self-lubricating bushing that can withstand radial and moment loads while reducing vibration at stop, up to 200mm.
★The pusher can be rotated without load, so that it does not require an external guide rail, and the application is more compact in the mechanism.

Update：2023.11.07

Stepper / Servo Motor
Model No.		GECX60
Mechanical Spec.	Table Size (mm)	60
	Travel Stroke (mm)	50、75、100、125、150、200
	Drive Type	Ball Screw Ø10
	Lead	5	10
	Rail	Self-Lubricating Sleeve Guiding
Stepper Precision Spec.	Stage Material	Aluminum Alloy / Black Anodized
	Wiring Method	N：Standard
	Max. Speed (mm/s)	100	200
	Repeatability Precision (mm)	± 0.005
	Referencing Precision (mm)	± 0.01
	Rotation Angle Changes of Putter End	0
	Max. Thrust Force (N)	77	42
	Horizontal Load (Kgf)	40	28
	Vertical Load (Kgf)	10	5
Stepper Electrical Spec.	Open-loop Driver	☐42，GTR22G-D
	Stage Side Connector	15-Pin male connector D-SUB
	Controller Side Connector	15-Pin female connector D-SUB
DC Servo Precision Spec.	Max. Speed (mm/s)	125	250
	Repeatability Precision (mm)	± 0.005
	Max. Thrust Force (N)	339	169
	Horizontal Load (Kgf)	20	14
	Vertical Load (Kgf)	5	3.5
DC Servo Electrical Spec.	DC Servo Motor	100W：GSVM - D01MD4
	DC Servo Driver	K-SERVO (GSV-DK01MR-48DP)
	Stage Side Connector	Manufacturer：TE Connectivity Power cord：172159-1 + 170366-1 (Male end) Encoder cable：172161-1 + 170365-1 (Male end)
	Controller Side Connector	Manufacturer：KST Power cord：E1510-RED (European Terminals) Manufacturer：JST Encoder cable：PHDR-12VS + SPHD-001T-P0.5 (Female end)
AC Servo Precision Spec.	Max. Speed (mm/s)	125	250
	Repeatability Precision (mm)	± 0.005
	Max. Thrust Force (N)	341	170
	Horizontal Load (Kgf)	20	14
	Vertical Load (Kgf)	5	3.5
AC Servo Electrical Spec.	AC Servo Motor	100W：GSVM-A01LC4
	AC Servo Driver	GSV-KE01MB-21CP
	Stage Side Connector	Manufacturer：Tyco electronics Power cord：172167-1 (Male end) Encoder cable：172171-1 (Male end)
	Controller Side Connector	Manufacturer：Tyco electronics Power cord：172159-1 (Female end) Encoder cable：172163-1 (Female end)

GECX60 Electric Cylinder
