GECF50 Electric Cylinder

★Low wear,high rigidity,high smoothness and high precision.
★Is made of aluminum alloy,lightweight design,built-in sensor,small product size and large space utilization.
★Motor electronic control can reduce wiring and reduce the space for using the drive and controller.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Specifications
Contact Us

Update：2023.11.07

Stepper Motor

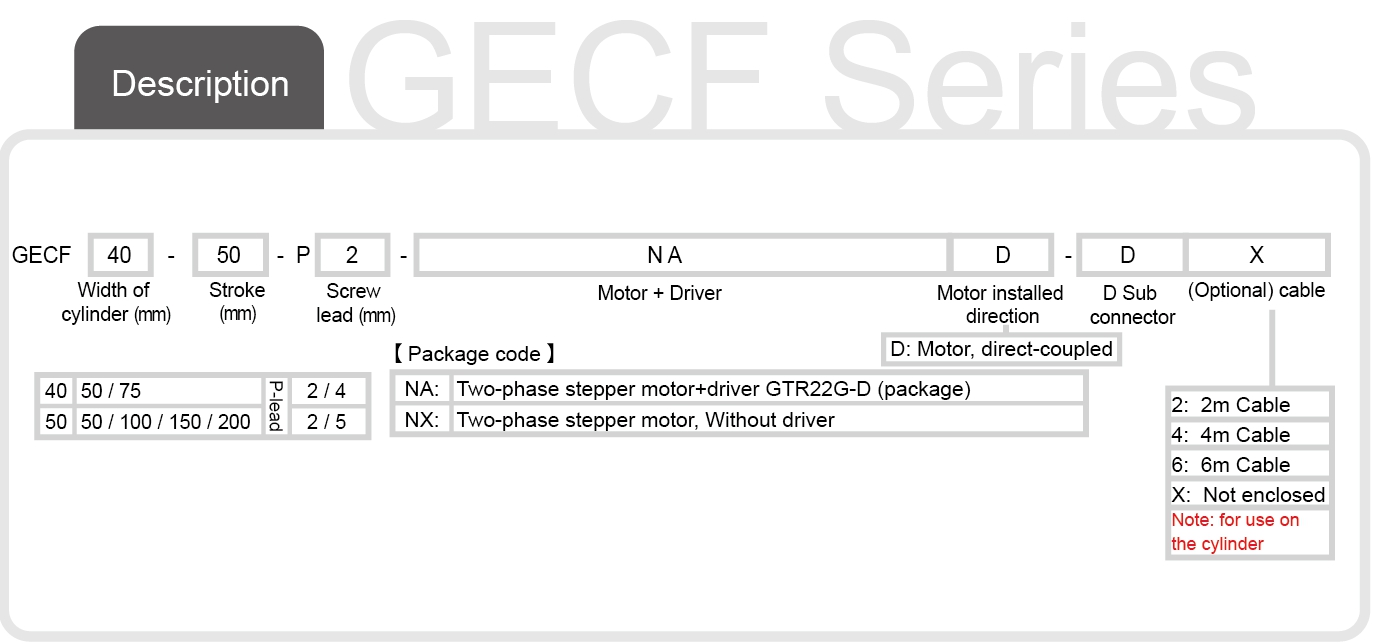

Model No.		GECF50
Mechanical Spec.	Table Size (mm)	50
	Travel Stroke (mm)	50、100、150、200
	Drive Type	Ball Screw Ø6
	Lead (mm)	2	5
	Rail	Circular Linear Ball Guiding
	Stage Material	Aluminum Alloy / Black Anodized
	Wiring Method	N：Standard
Precision Spec.	Max. Speed (mm/s)	30	75
	Repeatability Precision (mm)	± 0.005
	Referencing Precision (mm)	± 0.01
	Max. Thrust Force (N)	140	70
	Horizontal Load (Kgf)	8	4
	Vertical Load (Kgf)	4	2

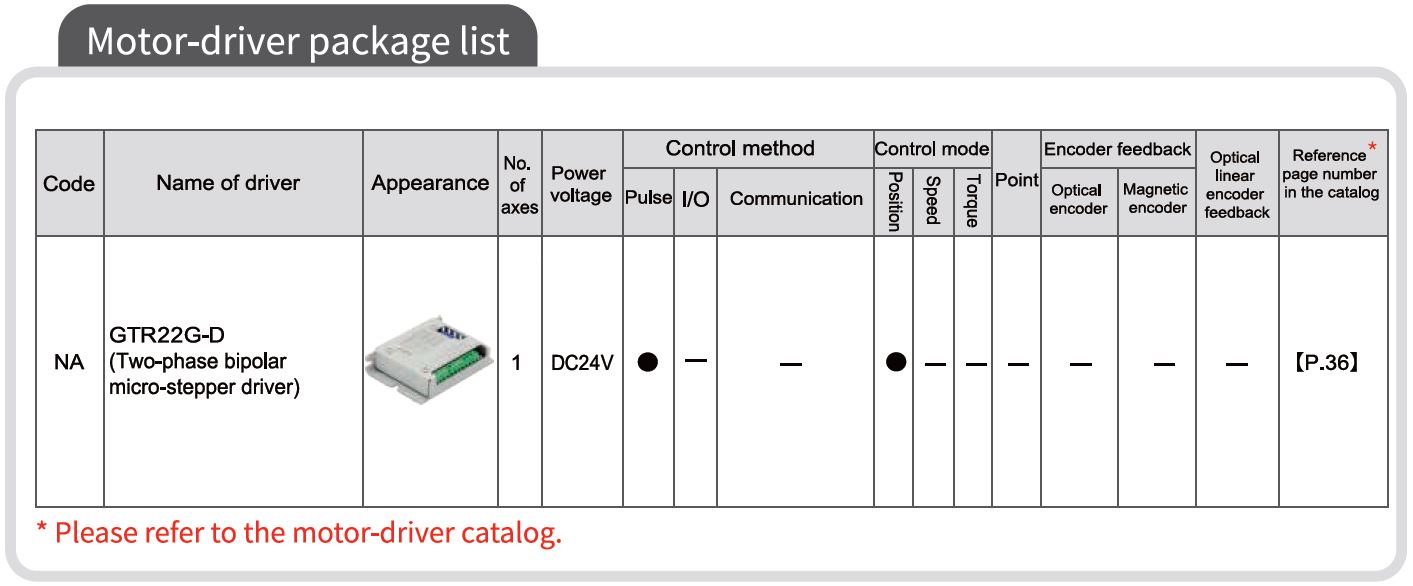

Electrical Spec.	Open-loop Driver	☐42，GTR22G-D
	Stage Side Connector	15-Pin male connector D-SUB
	Controller Side Connector	15-Pin female connector D-SUB
