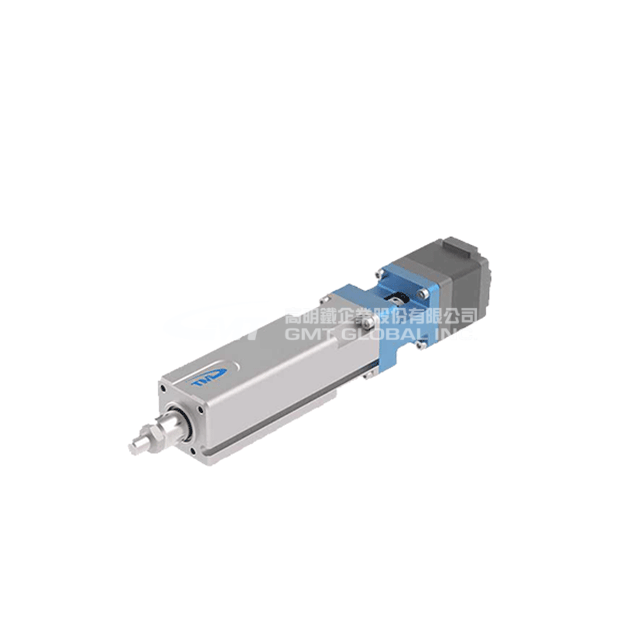

GECD28 Electric Cylinder

★Miniaturization, low profile.
★Built-in sensor can be used with Open-loop control.
★Sensor free available for Closed-loop control.
★Available to apply the specified driver with 32 IO points to control forcing torque.
★Mechanical built-in, no rails required.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Specifications
Contact Us

Update：2023.11.07

Stepper Motor
Model No.		GECD28
Mechanical Spec.	Table Size (mm)	28
	Travel Stroke (mm)	25、50、75、100
	Drive Type	Ball Screw Ø6
	Lead	1	2	4
	Rail	Self-Lubricating Sleeve Guiding
	Stage Material	Aluminum Alloy / Black Anodized
	Wiring Method	N：Standard
Precision Spec.	Max. Speed (mm/s)	15	30	60
	Repeatability Precision (mm)	± 0.005
	Max. Thrust Force (N)	254	127	63
Electrical Spec.	Open-loop Driver	☐28，GTR22G-D
	Close-loop Driver	N/A
	Stage Side Connector	15-Pin male connector D-SUB
	Controller Side Connector	15-Pin female connector D-SUB

GECD28 Electric Cylinder
