GECC95 Electric Cylinder

★Miniaturization, low profile, Built-in sensor can be used with Openloop control.
★Built-in sensor can be used with Open-loop control.
★Patented anti-creep rails integrated, fit to vertical moving needs.
★Compact design of motor built-in.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Specifications
Contact Us

Update：2023.11.07

Stepper Motor
Model No.		GECC75
Mechanical Spec.	Table Size (mm)	75
	Travel Stroke (mm)	50、75
	Drive Type	Ball Screw Ø8
	Lead	2	5	8
	Rail	Crossed Roller Guiding
Precision Spec.	Stage Material	Aluminum Alloy / Black Anodized
	Wiring Method	N: Standard
	Max. Speed (mm/s)	30	75	120
	Repeatability Precision (mm)	± 0.005
	Max. Thrust Force (N)	116	46	29
	Horizontal Load (Kgf)	8	3	2
	Vertical Load (Kgf)	2	0.8	0.5

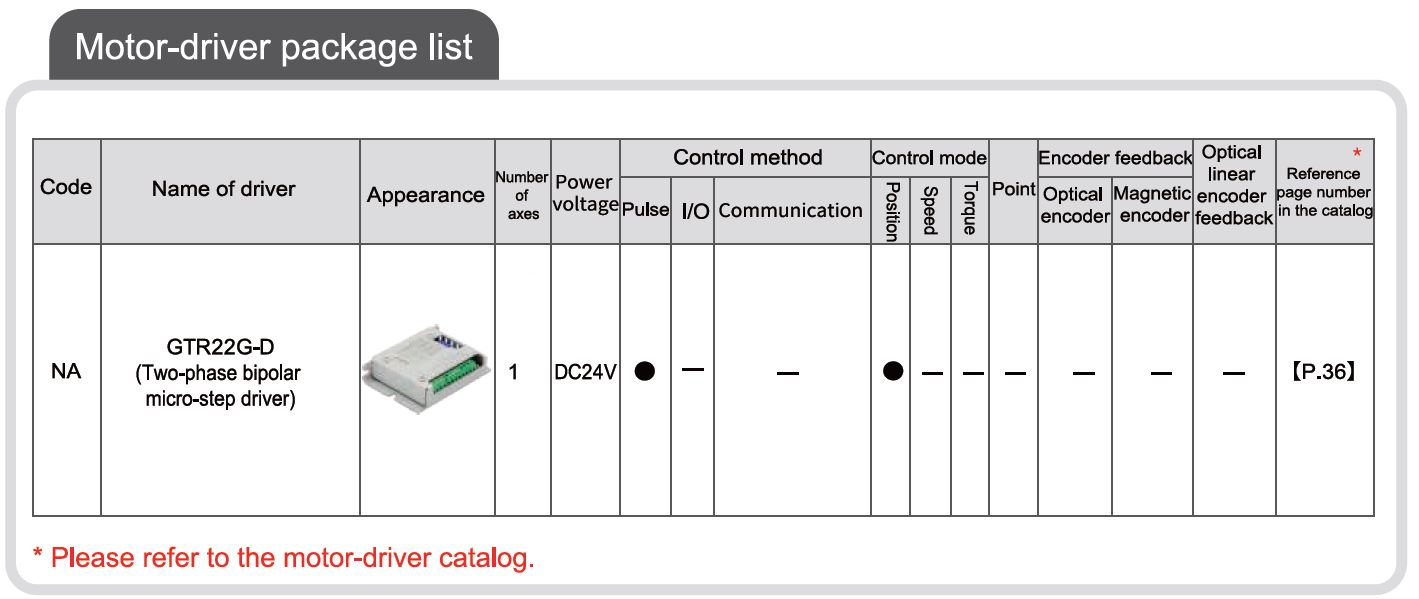

Electrical Spec.	Open-loop Driver	☐42，GTR22G-D
	Close-loop Driver	N/A
	Stage Side Connector	15-Pin male connector D-SUB
	Controller Side Connector	15-Pin female connector D-SUB

GECC95 Electric Cylinder
