Update：2023.11.07
Stepper Motor

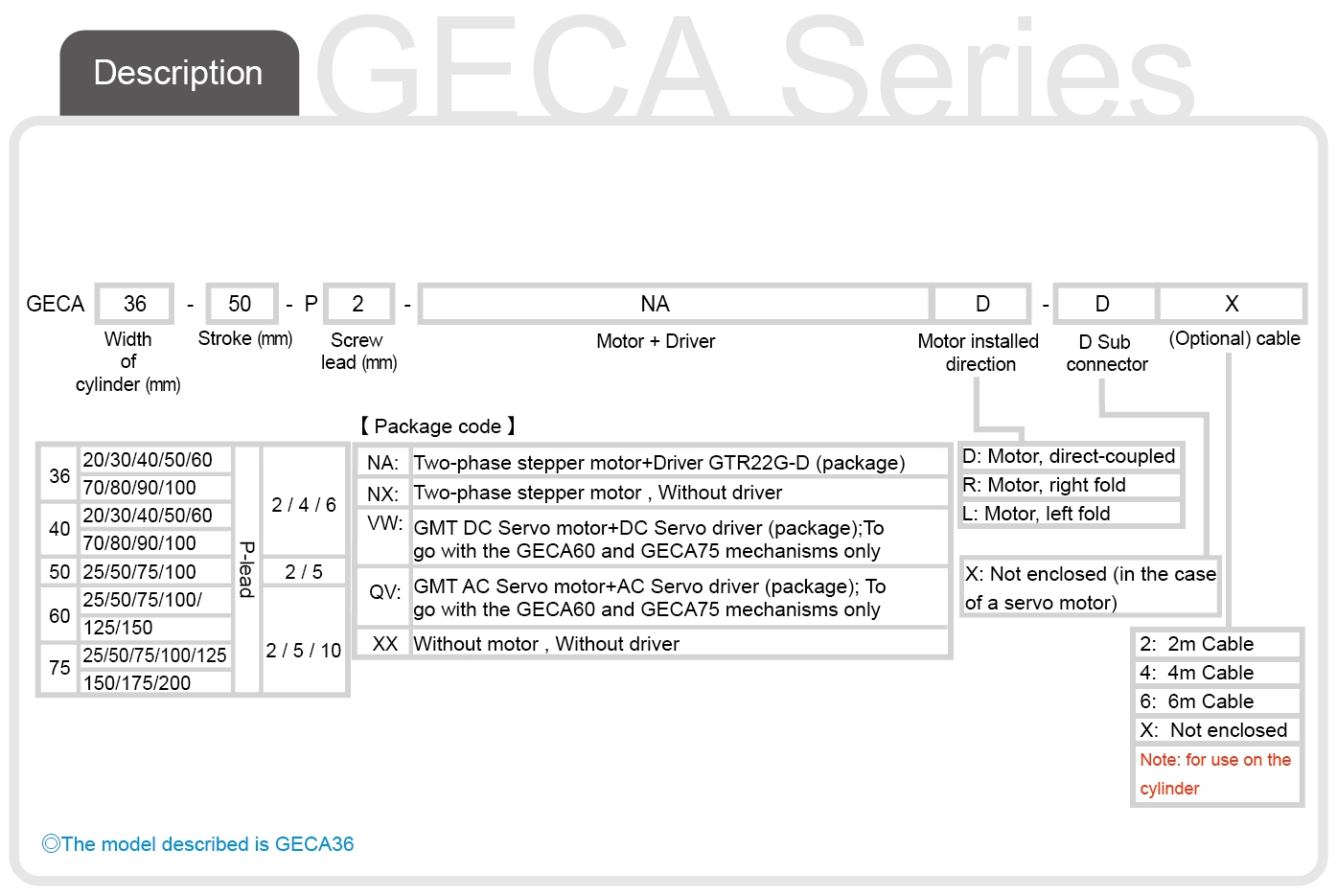

Model No.
GECA50
Mechanical Spec.
Table Size (mm)
50
Travel Stroke (mm)
25 ~ 100 (Per 10mm)
Drive Type
Ball Screw Ø8
Lead
2
5
Rail
Linear Ball Guiding
Precision Spec.
Stage Material
Aluminum Alloy / Black Anodized
Wiring Method
N: Standard
Max. Speed (mm/s)
30
75
Repeatability Precision (mm)
± 0.005
Max. Thrust Force (N)
175
88
Horizontal Load (Kgf)
8
6
Vertical Load (Kgf)
4
Electrical Spec.

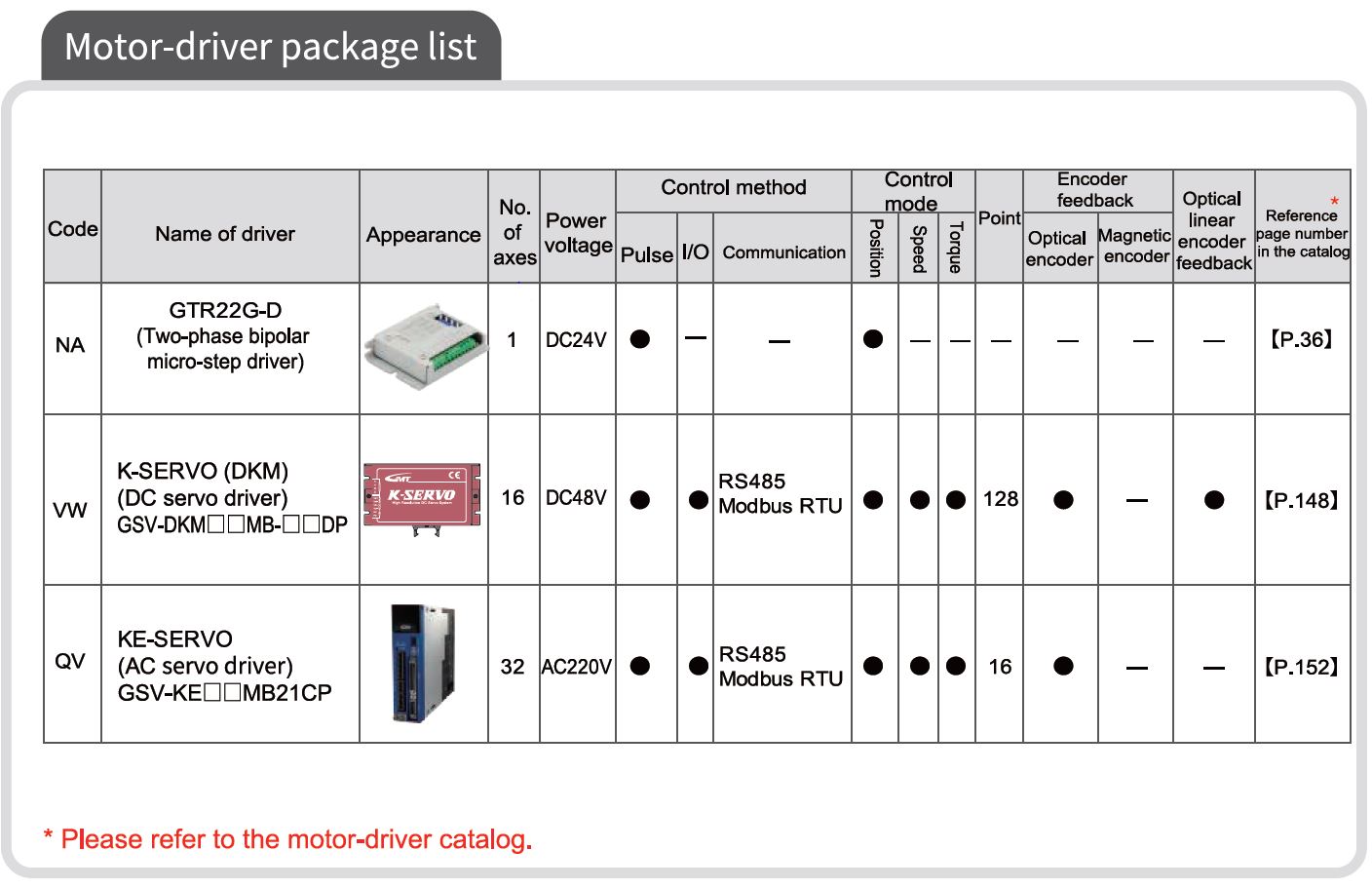

Open-loop Driver
☐35，GTR22G-D
Stage Side Connector
15-Pin male connector D-SUB
Controller Side Connector
15-Pin female connector D-SUB
