Update:2022.04.12
Model no.

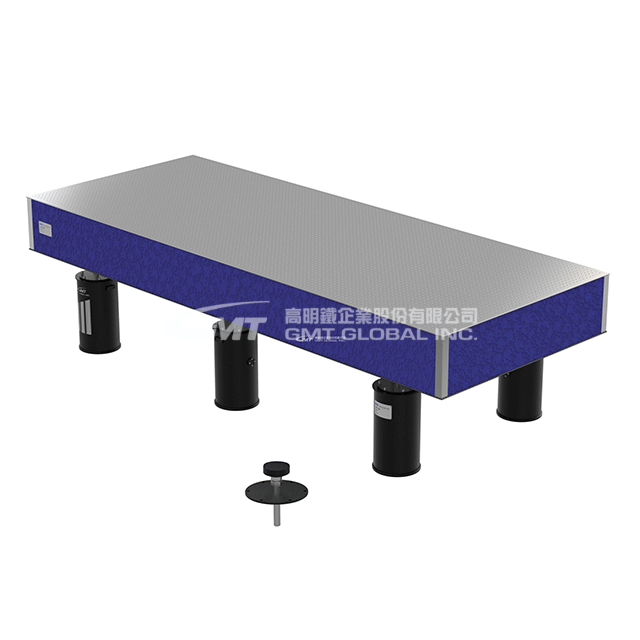

GDS-3015
Mechanical Specification
Natural frequency
15Hz
Breadboard style
Comb breadboard
Material
SUS430 cold-rolled ferritic stainless steel
Support leg style
Independently supported without casters
Vibration isolation method
Rubber gasket
Flatness (mm)
0.1 / 600×600
System load (kg)
1215
Support leg load (kg)
2040
Table size(mm)
3000/1500/300
Overall height (mm)
800
Table processing
25×25mm, M6Threaded hole
Number of Support leg
6
Main Unit Weight (kg)
916
Accessories
Horizontal calibrator, Adjustment wrench
Upgrade air floating accessories:
GUDS-6L
Applicable Model
GDS series 3012-3015
Vertical: 2 ~ 3Hz / Horizontal: 2 ~ 3Hz (load and center of gravity height related)
Vibration mode
Ultra - soft moulded diaphragm air spring
Self-balancing air floation
Air compressor (optional)
