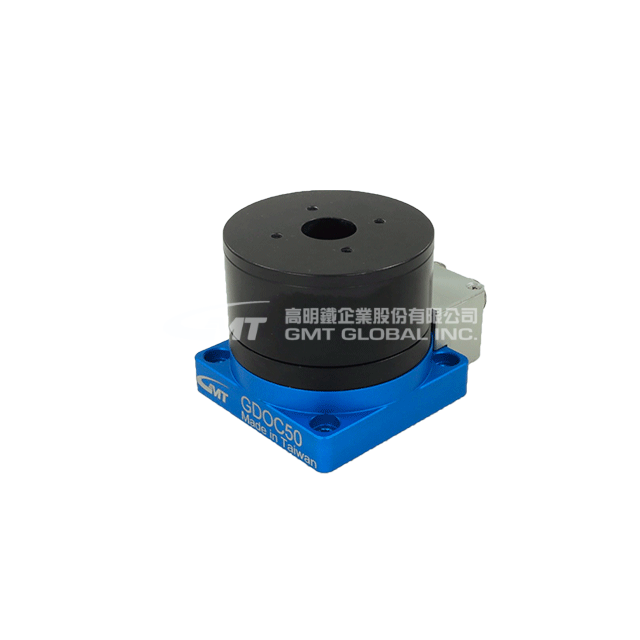

    GDOC50


    ★Miniaturized and lightweight modules, suitable for various applications, such as automated assembly lines, small testing environments.
    ★High-precision multi-turn absolute encoder, providing users with more diverse applications than ordinary single-turn absolute encoders.
    ★Voltage setting 48v low voltage is easy to apply to various structures or assembly line applications.
    ★It can be freely and flexibly matched with various GMT modules, and the combination is high.
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Updated: 2022.04.26

    Model

    GDOC50

    Electricity

    Gas

    Regulations

    Grid



    Rated Voltage (V.)

    48

    Rated Current (A)

    1.57

    Rated Torque (N.M)

    0.36

    Rated speed (rpm)

    350

    Maximum no-load speed (rpm)

    680

    Maximum Instantaneous Torque  ( N.M)

    0.82

    Maximum instantaneous current (A)

    3.62

    Line Resistance (Ω)

    4

    Phase-to-Phase Inductance (mH)

    1.76

    Rotor inertia (gcm²)

    268

    Torque Constant (N.M/A)

    0.23

    Pole logarithm

    14

    Operating Temperature Range (°C )

    -20~80°C

    Max Demagnetization Temperature ( °C)

    120°C

    K-SERVO specifications

    GSV-DKD50MB-24CP

    Communication Mode

    RS-485

    Encoder type

    Absolute encoder (multi-turn)

    Resolution

    19bit
