<span style="font-size: 12pt;">★ Guide-Linear ball, Gothic arc-groove formed by dual arc-grooves individually on upper and lower rails of body. Ball moving in single groove is structured by 2 points-contact, and total 4contact points in dual arc-groove to form strong rail constructure.</span> <br /><span style="font-size: 12pt;">★ Transmission Parts-Ball screw, It transmits through the ball involving in the locknut and screw to reach the accuracy and longer operation lifetime.</span> <br /><span style="font-size: 12pt;">★ Material-Steel</span> <p><br /><span style="font-size: 12pt;"><span style="color: #e03e2d;"><strong>★</strong></span><span style="color: #e03e2d;"><strong>This product pic. shows as AY60-F2NR-ND.</strong></span></span></p>">

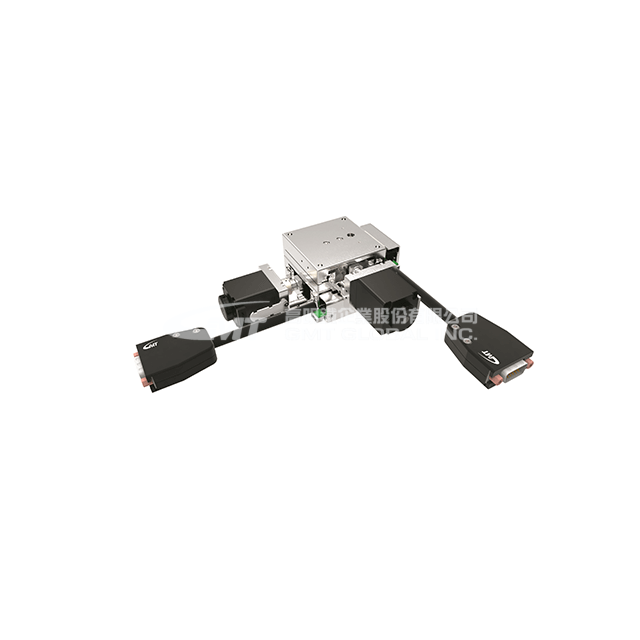

★This product pic. shows as AY60-F2NR-ND.
Update:2022.07.29
Model No. | AY40-F2NR-ND | AY40-F2NL-ND | ||
Mechanical Spec. | Table Size (mm) | 40 X 40 | ||
Travel Stroke (mm) | 15 | |||
Drive Type | Ball screw Ø6, lead 1mm | |||
Rail | Linear Ball Guiding | |||
Stage Material / Surface Treatment | Steel / Nickel Plating | |||
Main Unit Weight (Kg) | 0.8 | |||
Coupling | FAMC13-5*5 | |||
Accuracy Level | N:Standard grade | |||
Wiring Method | R:Right Wiring / L:Left Wiring | |||
Precision Spec. | Resolution (Pulse) (µm) | 5 (Full) / 2.5 (Half) | ||
Max. Speed (Full Step) (mm / sec) | 12 | |||
Positioning Presion (µm) | 15 | |||
Repeatability Precision (µm) | ± 1 | |||
Load Capacity (Kgf) | 9 | |||
Missed Step (µm) | 3 | |||
Parallelism (µm) | 20 | |||
Dynamic Straightness (µm) | 3 | |||
Dynamic Parallelism (µm) | 10 | |||
Electrical Spec. | Motor | Type / Shaft Numbers | 2-phase stepper / ☐ 28 double shafts | |
Brand / Model | GMT / 2MS-N28D32A | |||
Driver Brand / Model | GMT / GTR22G-D (Additional options) | |||
Connector | Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | ||
Controller Side Connector | 15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options) | |||
Sensor | Origin Sensor | Photoelectric sensor GMT-sensor | ||
Limit Sensor | ||||
Power Voltage | 24V ± 10% | |||
Control Output | NPN open collector output under 24V 8mA | |||
Output Control | Testing (sensing):output transistor OFF (closed) |
System Configuration Diagram |
♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver. ♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs. |
Axis Definition |
GMT has defined different axis as the following figuration according to the movement direction: Horizontal movement direction is X and Y axis. Vertical movement direction is Z axis. Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis. Green arrows present the specified axis movement direction. |
Motor・driver Reference Table |
|
