    AX120-A - Standard


    ★ Guide-Crossed-roller Guide, In structure, V-groove and crossed roller acquire movement in high accuracy and capacity by linear transmission to act a high precision movement and load capacity performance.
    ★ Transmission Parts-Ball screw, It transmits through the ball involving in the locknut and screw to reach the accuracy and longer operation lifetime.
    ★ Material-Aluminum Alloy

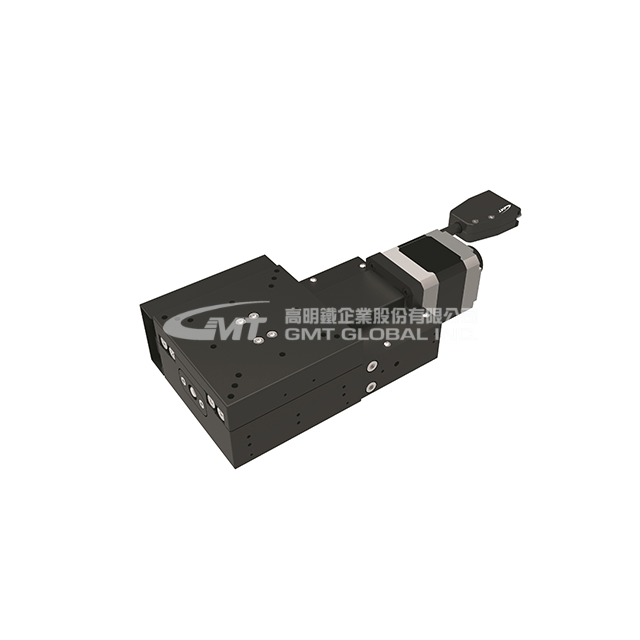

    This product pic. shows as AX80-A2NR-ND.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.12.06

    Model No.

    AX120-A2NR-ND

    AX120-A2NL-ND

    Mechanical Spec.

    Table Size (mm)

    120 X 120

    Travel Stroke (mm)

    70

    Drive Type

    Ball screw Ø8, lead 1mm

    Rail

    Anti-creep crossed-roller guiding

    Stage Material / Surface Treatment

    Aluminum alloy / Black anodized

    Main Unit Weight (Kg)

    2.6

    Coupling

    FAMMS16-5*5

    Accuracy Level

    N:Standard grade

    Wiring Method

    R:Right wiring

    L:Left wiring

    Precision Spec.

    Resolution (Pulse) (µm)

    5 (Full) / 2.5 (Half)

    Max. Speed (Full Step) (mm / sec)

    10

    Positioning Presion (µm)

    15

    Repeatability Precision (µm)

    ± 1

    Load Capacity (Kgf)

    25

    Missed Step (µm)

    2

    Parallelism (µm)

    30

    Dynamic Straightness (µm)

    3

    Dynamic Parallelism (µm)

    10

    Electrical Spec.

    Motor

    Type / Shaft Numbers

    2-phase stepper / ☐ 42 double shafts

    Brand / Model

    GMT / 2MS-N42D47A

    Driver Brand / Model

    GMT / GTR22G-D (Additional options)

    Connector

    Stage Side Connector

    15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS

    Controller Side Connector

    15-Pin female end connetor D-SUB / 12-Pin female end connetor HRS (Additional options)

    Sensor

    Origin Sensor

    Photoelectric sensor GMT-sensor

    Limit Sensor

    Power Voltage

    24V ± 10%

    Control Output

    NPN open collector output under 24V 8mA

    Output Control

    Testing (sensing):output transistor OFF (closed)





    System Configuration Diagram

    ♦   For selection of the drivers preferred, please refer to the reference table or the catalogue of MotorDriver.

    ♦  All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs.



    Axis Definition

    GMT has defined different axis as the following figuration according to the movement direction:

    Horizontal movement direction is X and Y axis.

    Vertical movement direction is Z axis.

    Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.

    Green arrows present the specified axis movement direction.



    Motordriver Reference Table
