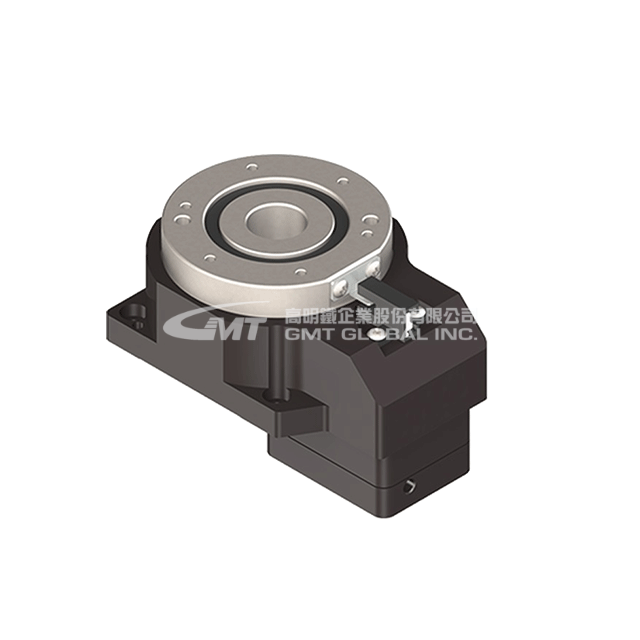

    ARG200 - Hollow Rotary Stage

    • ★Available for large withstand large inertia.
    • ★Hollow structure for wiring arrangement.
    • ★Suspended installation available.
    • ★High rigidity, and High load capacity.
    • ★360° travel Stroke.
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2023.10.19

    Servo Motor

    Model No.

    ARG200

    Mechanical Spec.

    Base Size (mm)

    200 X 250

    Table Size (mm)

    Ø 195

    Hollow Size (mm)

    Ø 100

    Travel Stroke

    360 °

    Drive Type

    Gear (Reduction Ratio 1 / 10) R10

    Rail

    Crossed-Roller Guiding

    Stage Material / Surface Treatment

    Aluminum Alloy (Steel Countertops) / Black Anodized

    Torque (N・m)

    21

    Moment of Inertia (Kg・m2)

    67089 X 10-8

    Max. Speed (rpm)

    110

    Axial Capacity (N)

    5919

    Deviaition Capacity (N・m)

    148

    Weight (Kg)

    7.88

    Precision Spec.

    Accuracy Level

    P:Precision Grade

    Positioning Precision

    2' (0.034 °)

    Repeatability Precision

    ± 10" (± 0.0028 °)

    Missed Step

    4' (0.0667 °)

    Parallelism (μm)

    30~35

    Dynamic Straightness (μm)

    11

    Dynamic Parallelism (μm)

    11

    Equipped with Motor

    Servo Motor

    E90S19 (Addition Purchase)

    750

    Moment of Installation:P . C . D =  Ø 90

    Suitable Shaft Diameter Ø 19

    Stepper Motor

    T70S14 (Addition Purchase)

     ☐86

    Moment of Installation:☐70

    Suitable Shaft Diameter Ø 14

    Origin Sensing Kit

    Sensor

    Photoelectric Sensor PM-T65 (Addition Purchase)

    Power Voltage

    20V ± 10%

    Control Output

    NPN Open Collector Output under 20V 50mA

    Output Control

    Testing (Sensing or not):Output Transistor OFF (Closed)

    Shading Panel Beating

    Origin Sensing Interrupt (Addition Purchase)

    Cable with End of a Thread

    The Length of Cable below 1m:CN14A-C1 (Addition Purchase)

    The Length of Cable below 2m:CN14A-C2 (Addition Purchase)

    The Length of Cable below 3m:CN14A-C3 (Addition Purchase)

    The Length of Cable below 5m:CN14A-C5 (Addition Purchase)

    AC Servo Electrical Spec.

    AC Servo Motor

    750 W:GSVM-A08LC4

    AC Servo Driver

    GSV-KE08MB21CP

    Stage Side Connector

    Manufacturer:TE Connectivity

    Power cord:172159-1 + 170366-1 (Male end)

    Encoder cable:172161-1 + 170365-1 (Male end)

    Controller Side Connector

    Manufacturer:KST

    Power cord:E1510-RED (European Terminals)

    Manufacturer:JST

    Encoder cable:PHDR-12VS+SPHD-001T-P0.5 (Female end)

    Servo Motor Origin Sensing Kit

    Sensor

    Photoelectric Sensor PM-T65 (Addition Purchase)

    Power Voltage

    20V ± 10%

    Control Output

    NPN Open Collector Output under 20V 50mA

    Output Control

    Testing (Sensing or not):Output Transistor OFF (Closed)

    Shading Panel Beating

    Origin Sensing Interrupt (Addition Purchase)

    Cable with End of a Thread

    The Length of Cable below 1m:CN14A-C1 (Addition Purchase)

    The Length of Cable below 2m:CN14A-C2 (Addition Purchase)

    The Length of Cable below 3m:CN14A-C3 (Addition Purchase)

    The Length of Cable below 5m:CN14A-C5 (Addition Purchase)
